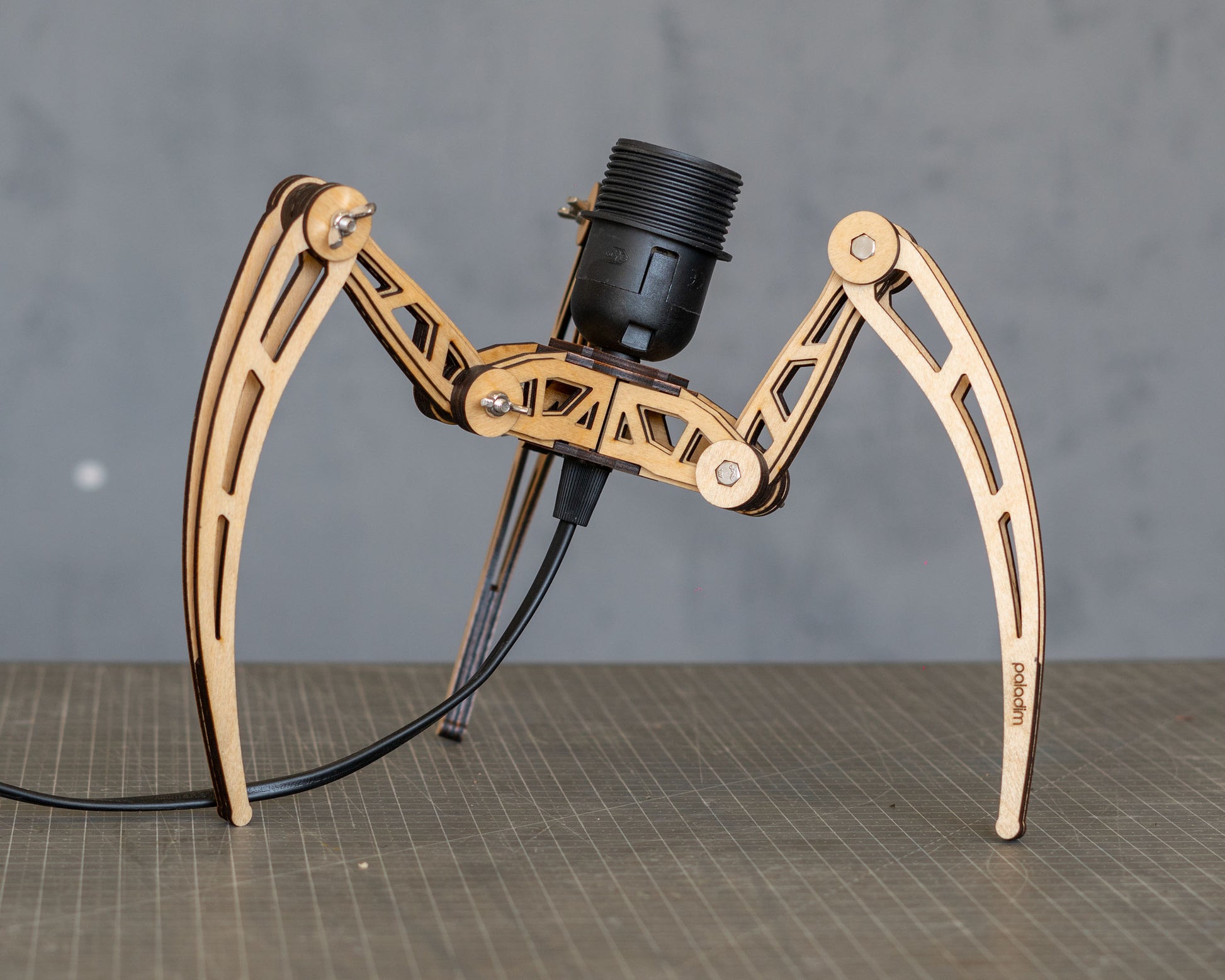

This is for all of my fellow makers who are looking for something cool to make. What you need is a laser cutter or cnc router, and some plywood or mdf or whatever you find fitting.
Feel free to contact me with any feedback or if you have questions about the making process. Thank you for your support and go make!
Compatible with All Laser Software
Ordering this file will allow you to download it instantly as a ZIP archive. The included file formats (SVG, DXF, and LightBurn) are compatible with popular laser software like LightBurn, LaserGRBL, RDWorks, xTool Creative Space (XCS) and more. No matter your setup, these files are ready for your laser cutter.
Included Files:
- SVG: Scalable Vector Graphics for universal compatibility
- DXF: Detailed CAD-compatible format for precise cutting
- LightBurn: Optimized for LightBurn users
Materials & Assembly:
Designed for 3mm plywood. I use birch BB/BB.
Includes detailed instructions for assembly. This is what you need to make it:
- 3mm plywood for the body: 1 sheet sized mininum 60x20cm

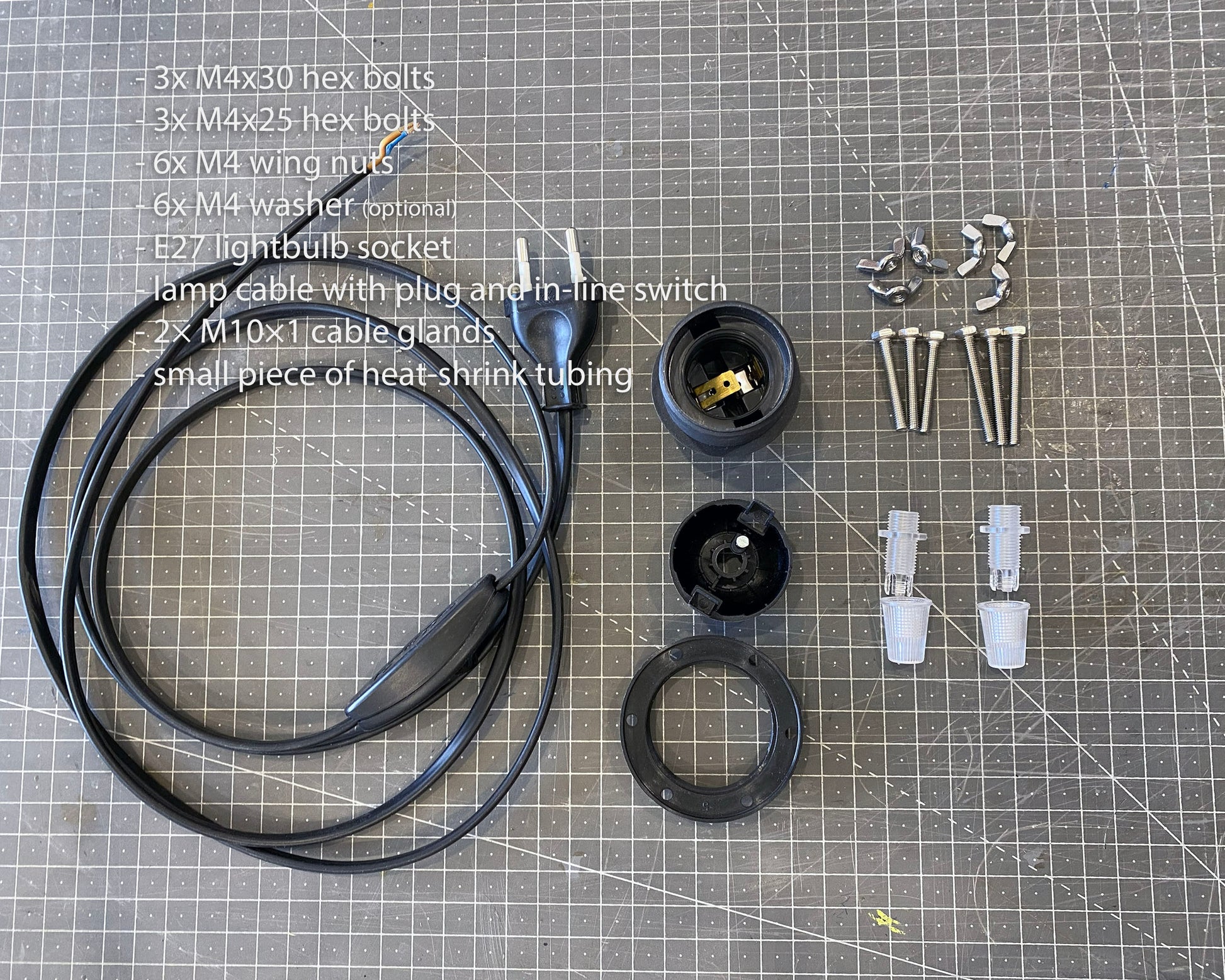

Additional hardware used:
- 3× M4×30 hex bolts
- 3× M4×25 hex bolts
- 6× M4 washers
- 6× M4 wing nuts
- E27 lightbulb socket
- lamp cable with plug and in-line switch
- 2× M10×1 cable glands
- small piece of heat-shrink tubing
See the original TRIKRAK model here:
https://paladimstudio.com/products/trikrak-character-lamp
