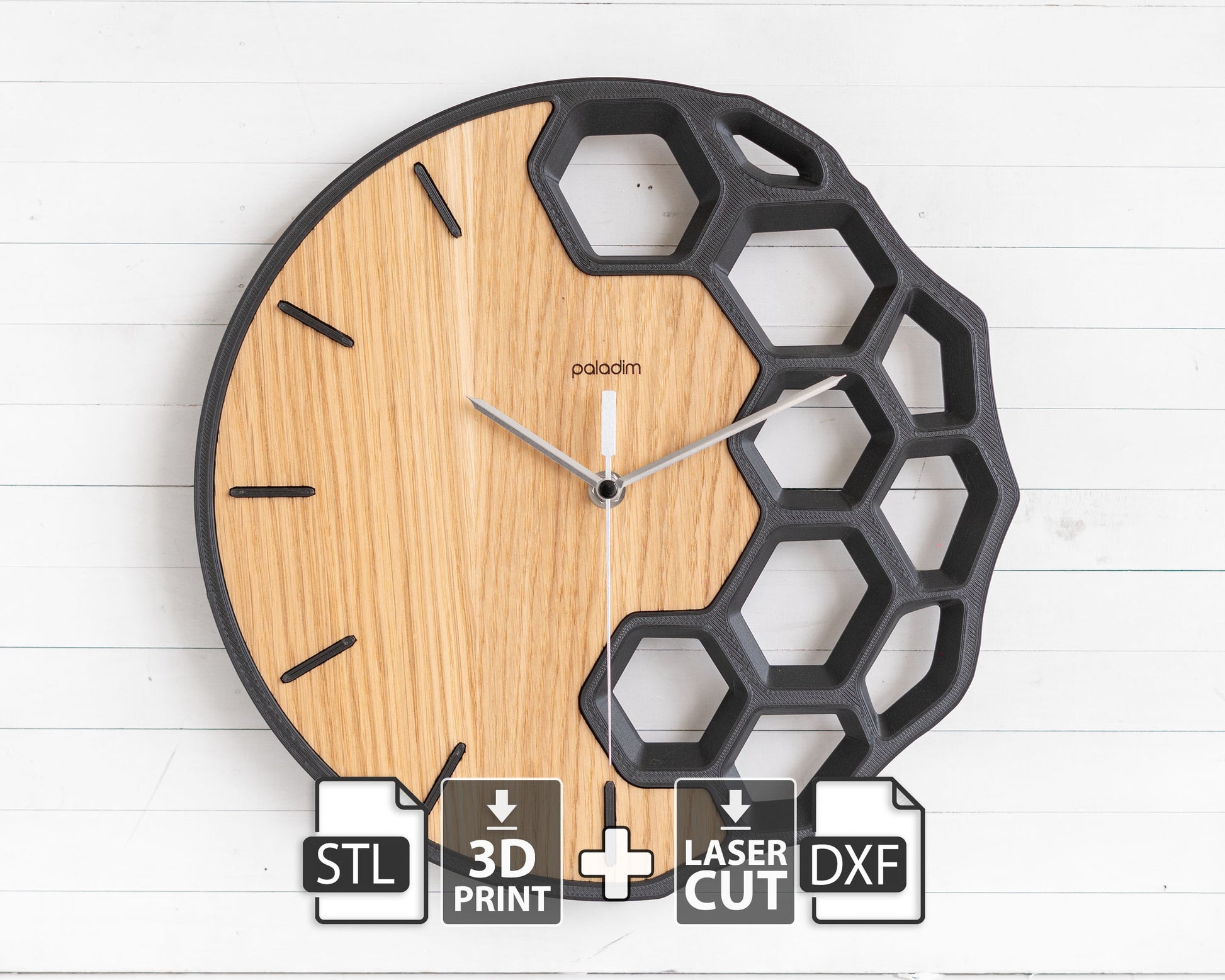

"KLETKA 4.1" STL Wall Clock Hybrid DIGITAL DESIGN for 3D Printing and Laser Cutting

This is for all of my fellow makers who are looking for something cool to make.

Feel free to contact me with any feedback or if you have questions about the making process. Thank you for your support and go make!

Ordering this file will allow you to download it instantly as a ZIP archive. The included STL files are compatible with any 3D printer slicer software.

Included Files:

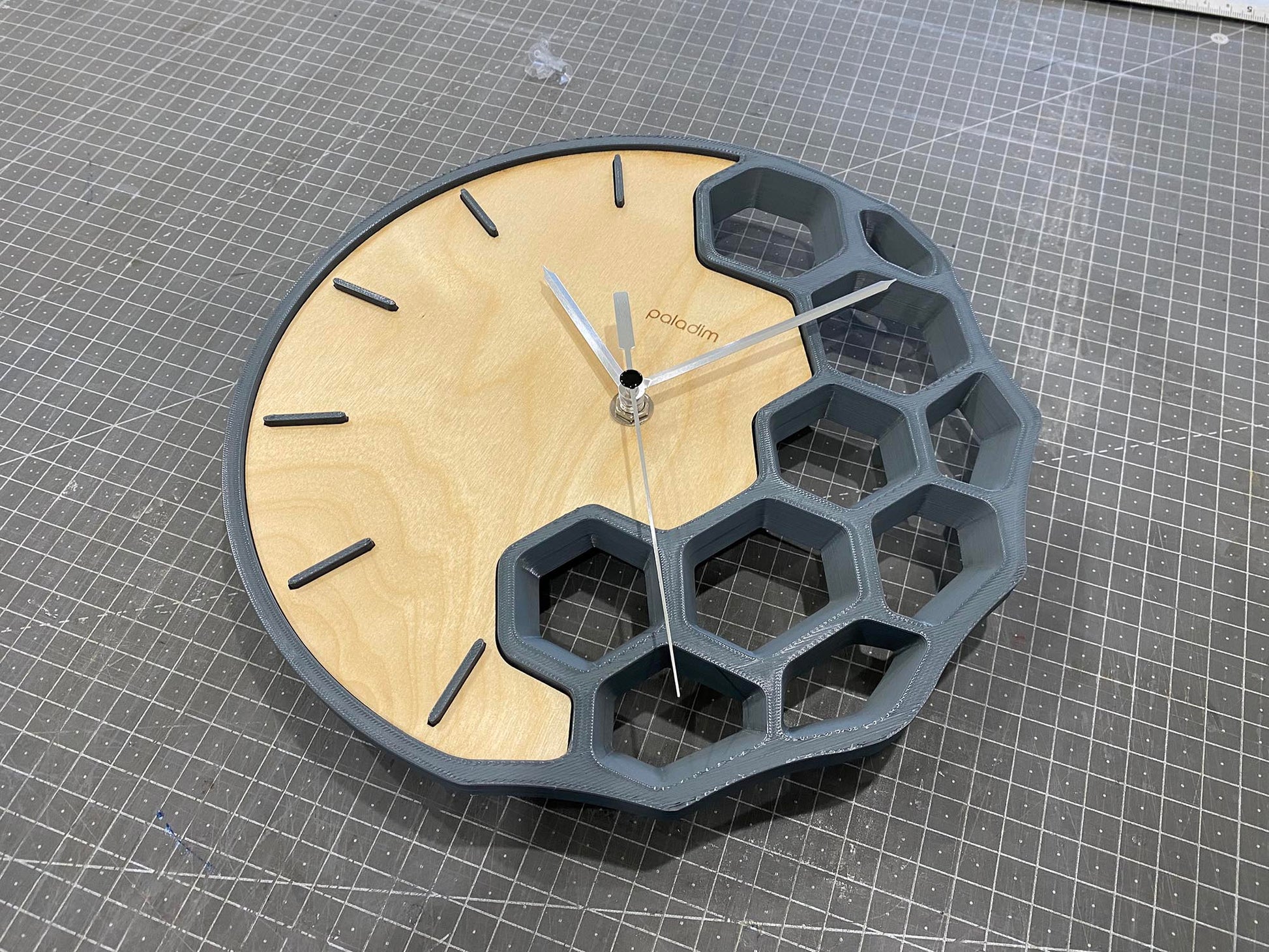

1) Ф25cm version
2) Ф30cm version

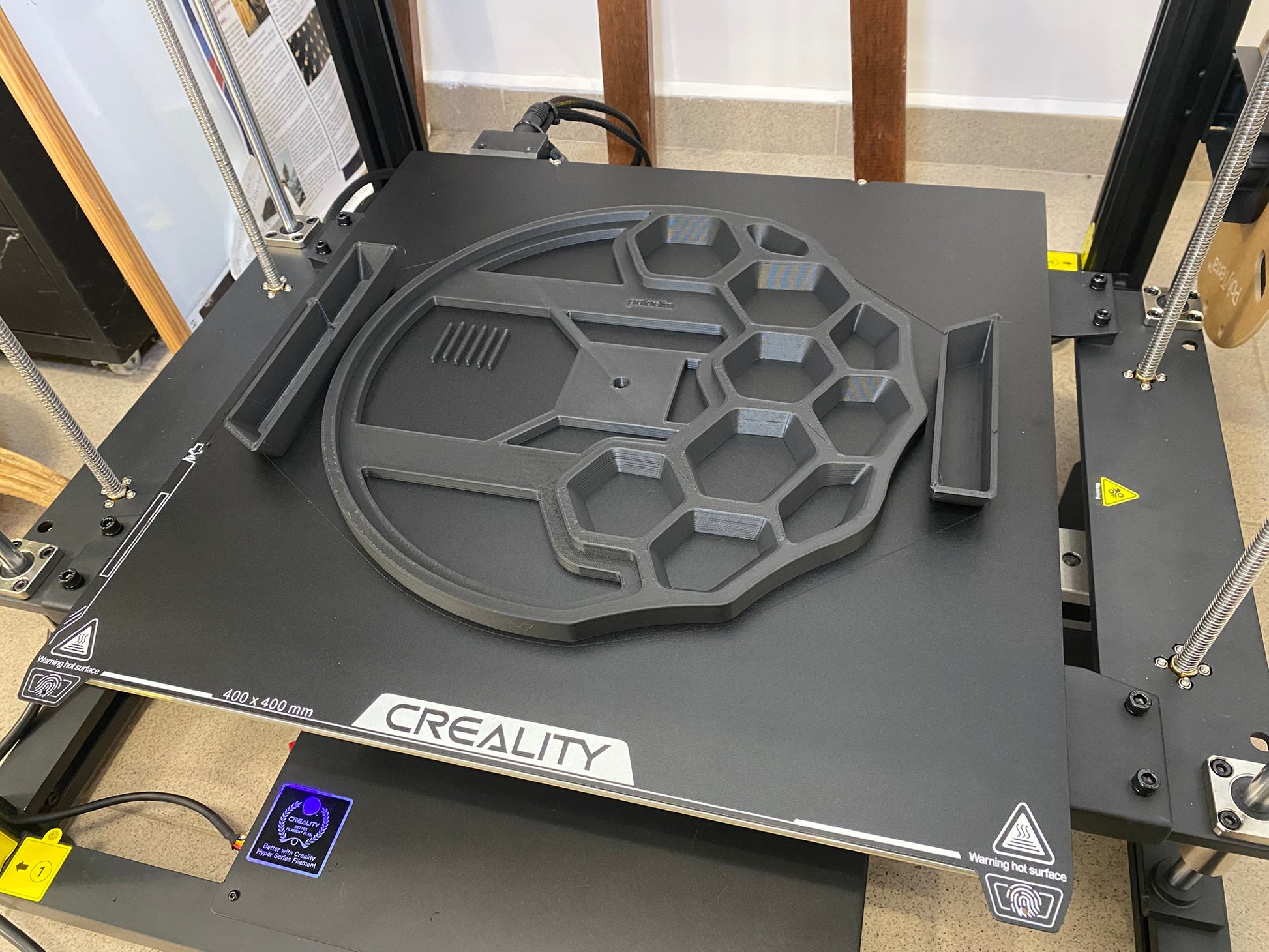

- full print for a larger print bed to print it on one piece

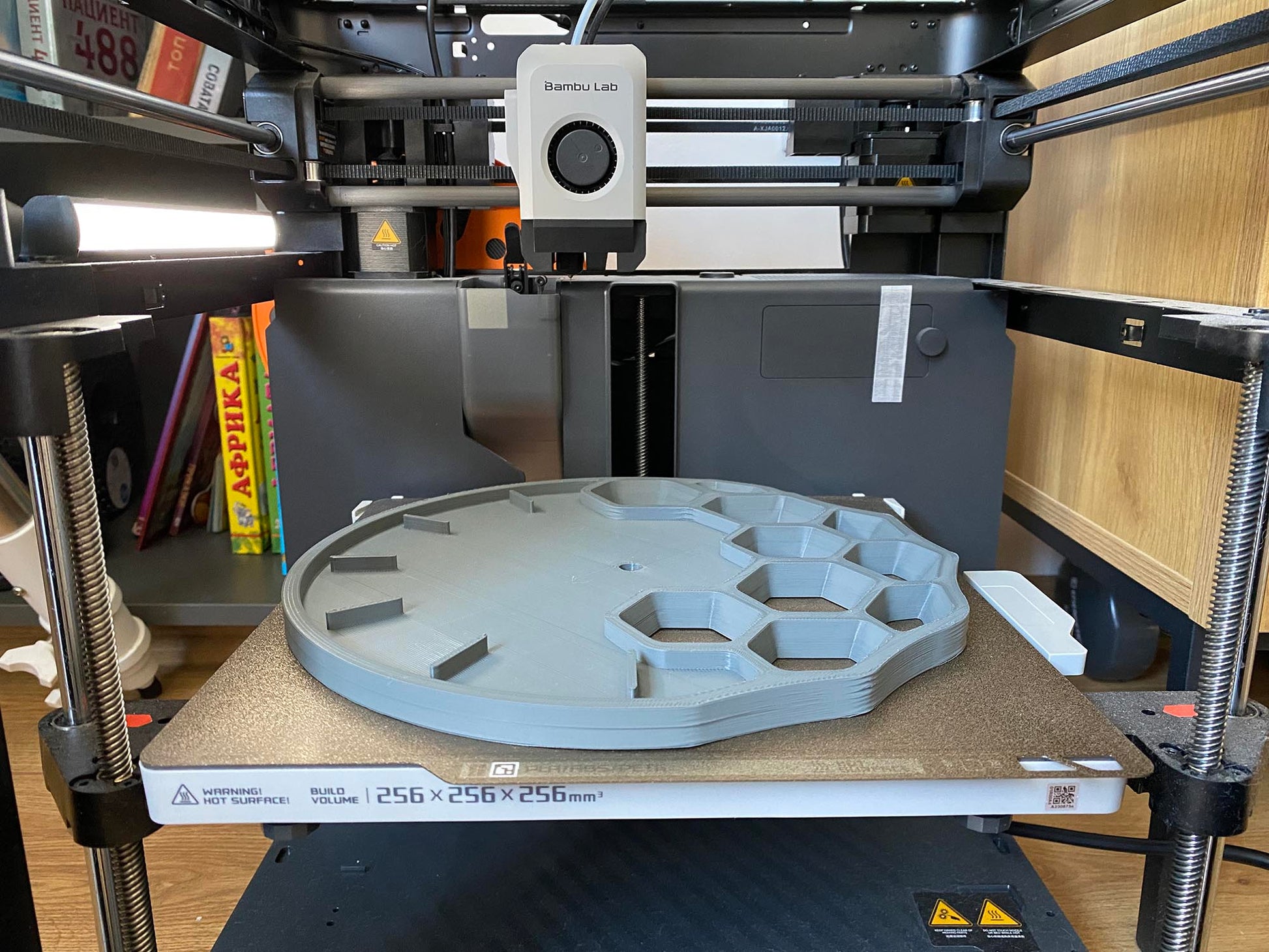

- sliced model parts that fit a 256x256mm print bed - print in four parts and glue together with CA glue
3) DXF + SVG vector of the face (for laser cutting it if you want)

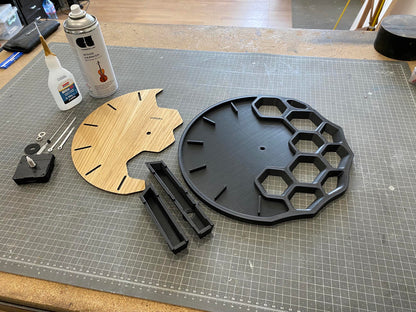

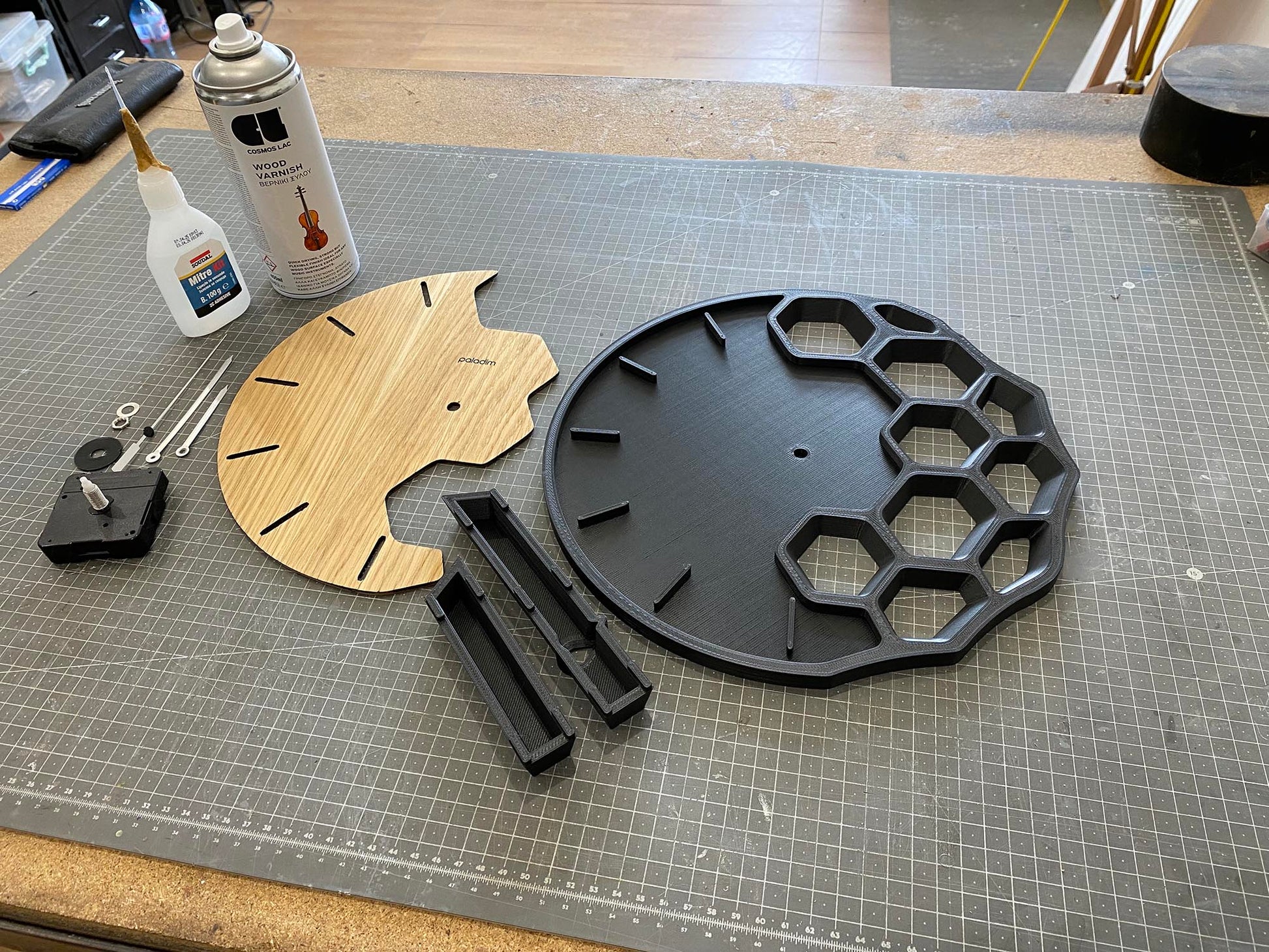

Materials & Assembly:

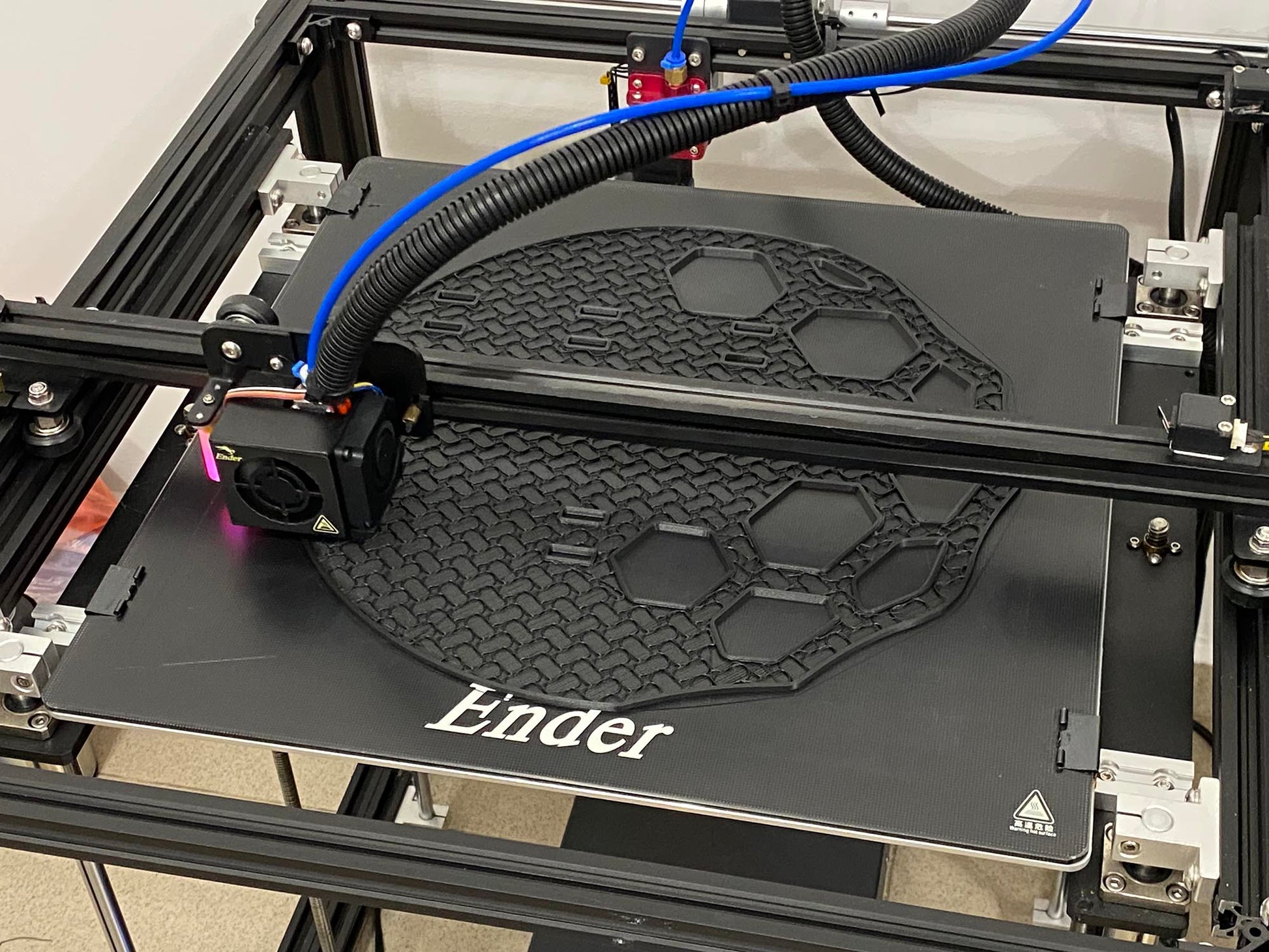

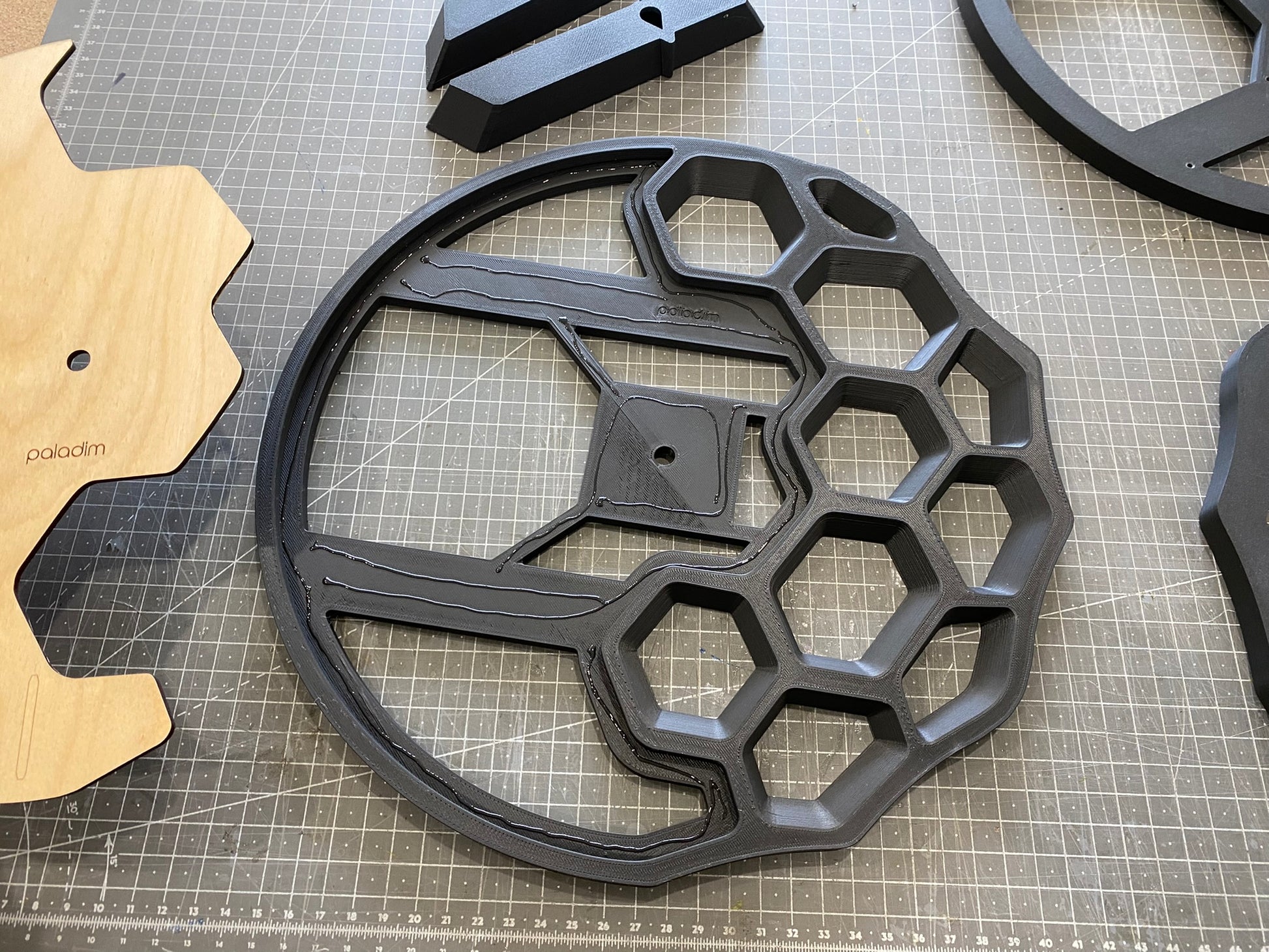

- the 30cm version I printed using 2 walls, 15% infill, took 250g of filament.

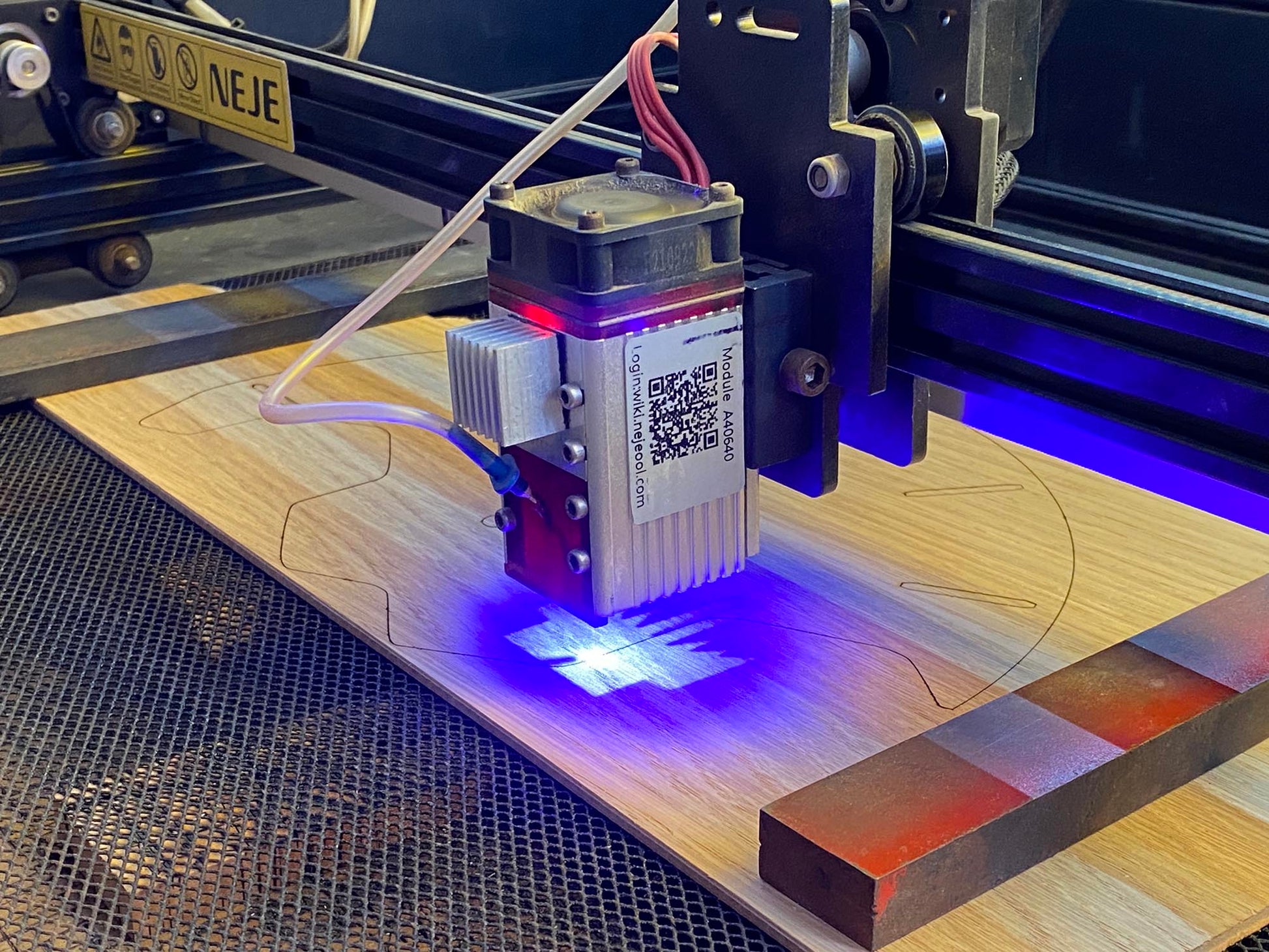

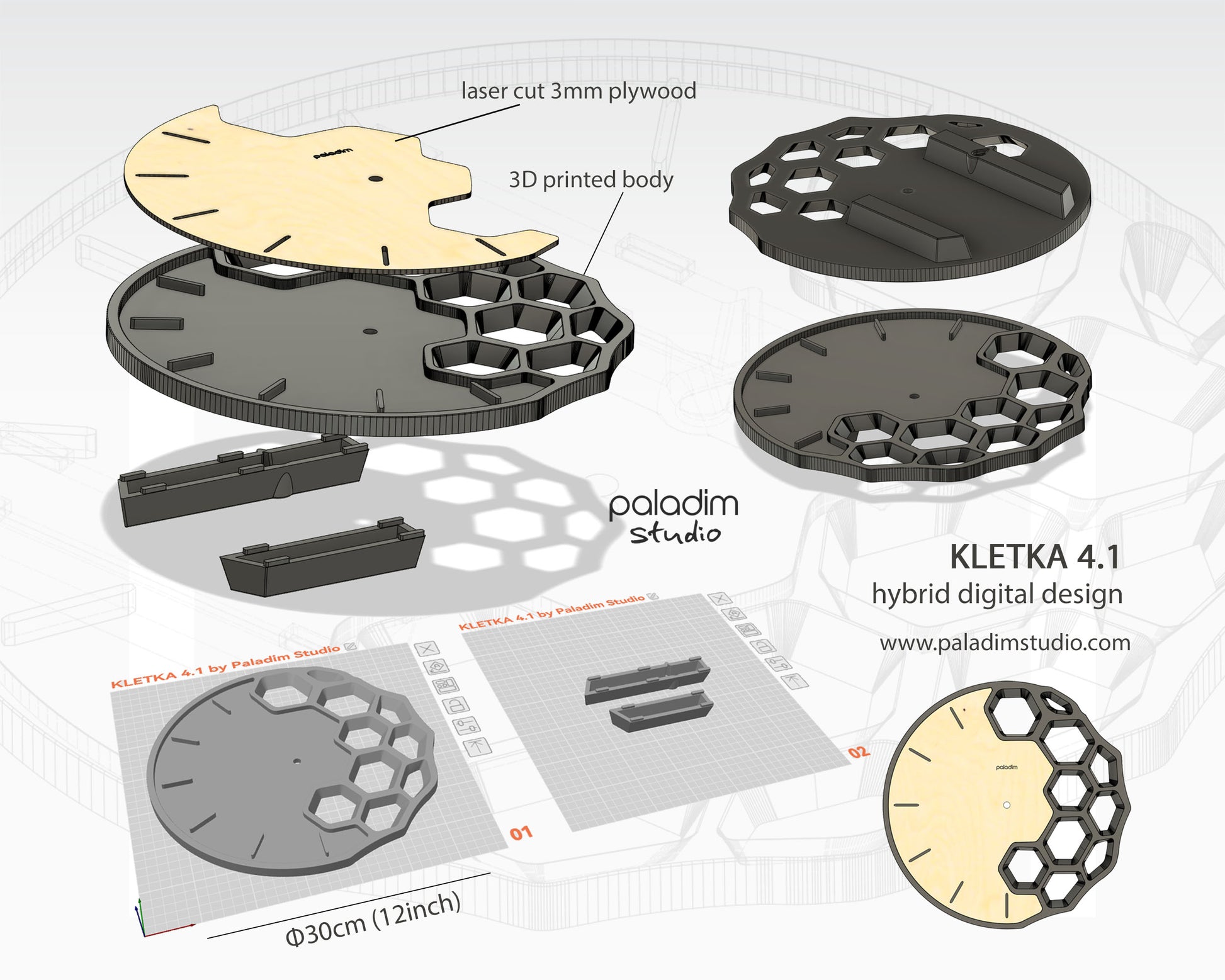

- I used a 30x25cm piece of 3mm plywood for the face that I laser cut. You can use either 3mm or 4mm thick plywood (or other material like acrylic if you like). There is also a 3D printable face included if you don't have a laser.
- the pocket that the face goes in is 5mm deep meaning that the clock mechanism needs at least 5mm long shaft to ensure that the hands will stay above the clock top surface.

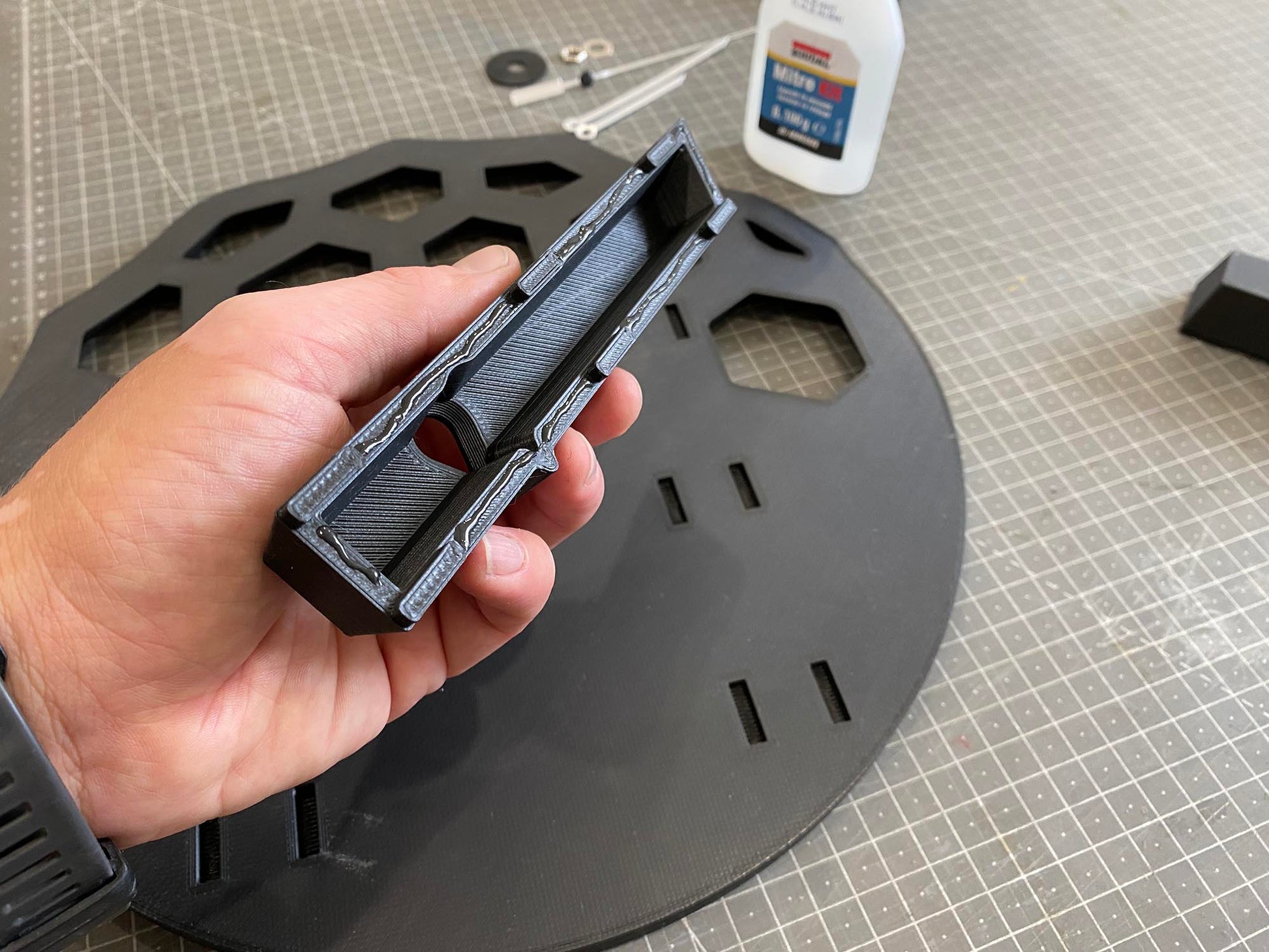

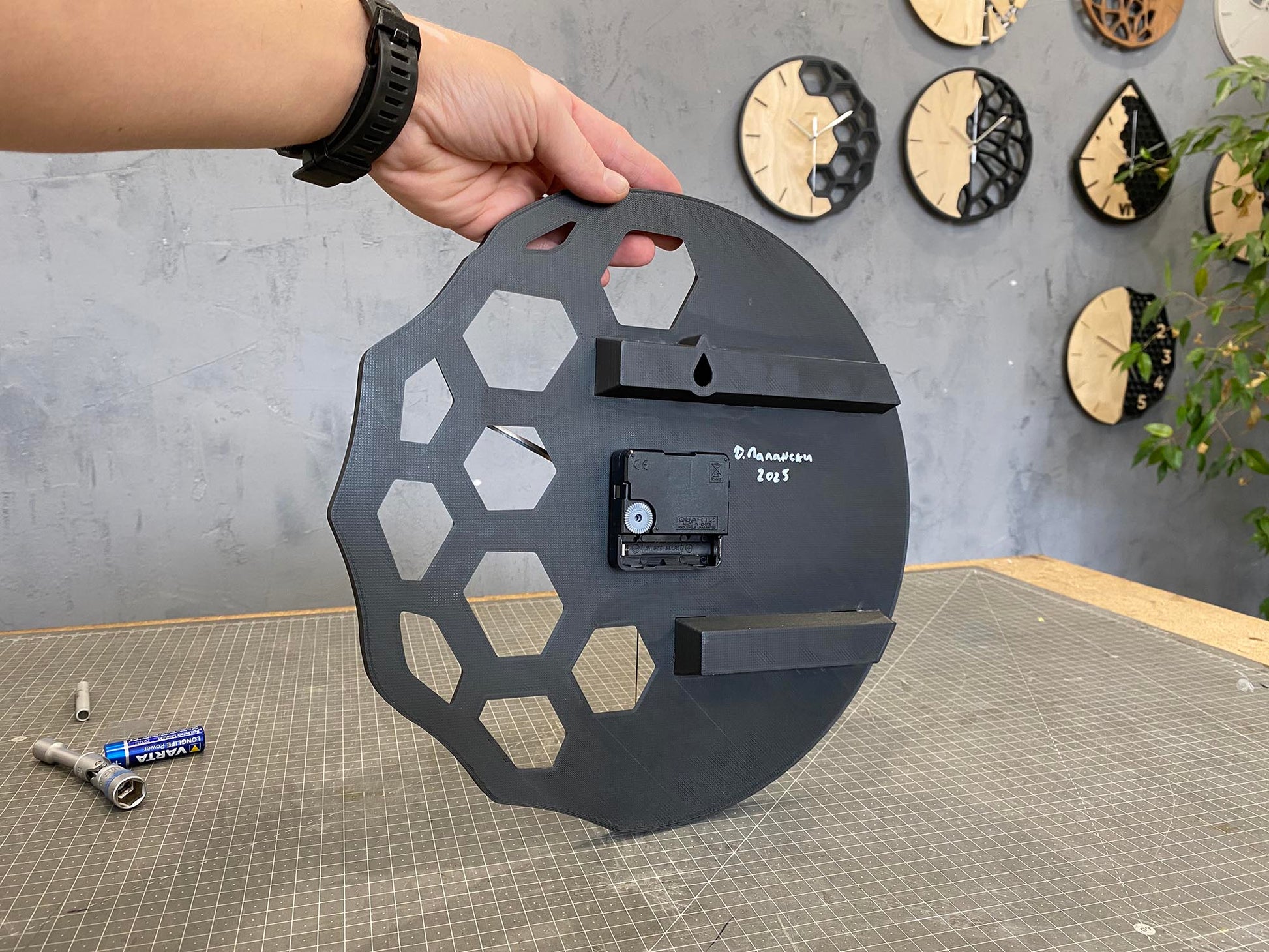

- I have included a distance block that can be printed and scaled across Z to make sure a mechanism with a longer shaft will fit, too. For example I used a 5mm thick block to place between my mechanism and plywood face because my mechanism shaft length is 12mm. This means you can use a mechanism with shaft length between 5 and 15mm.

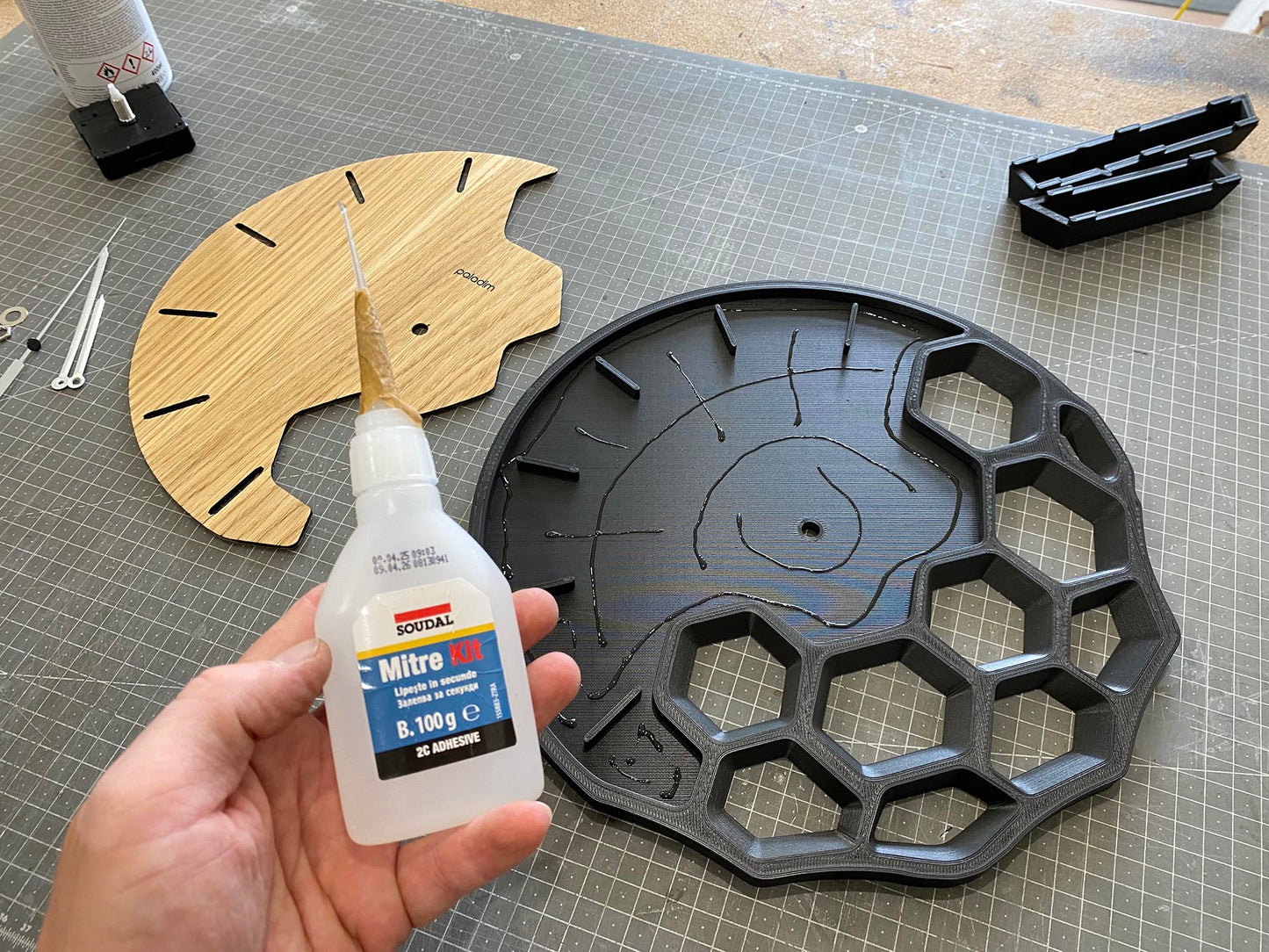

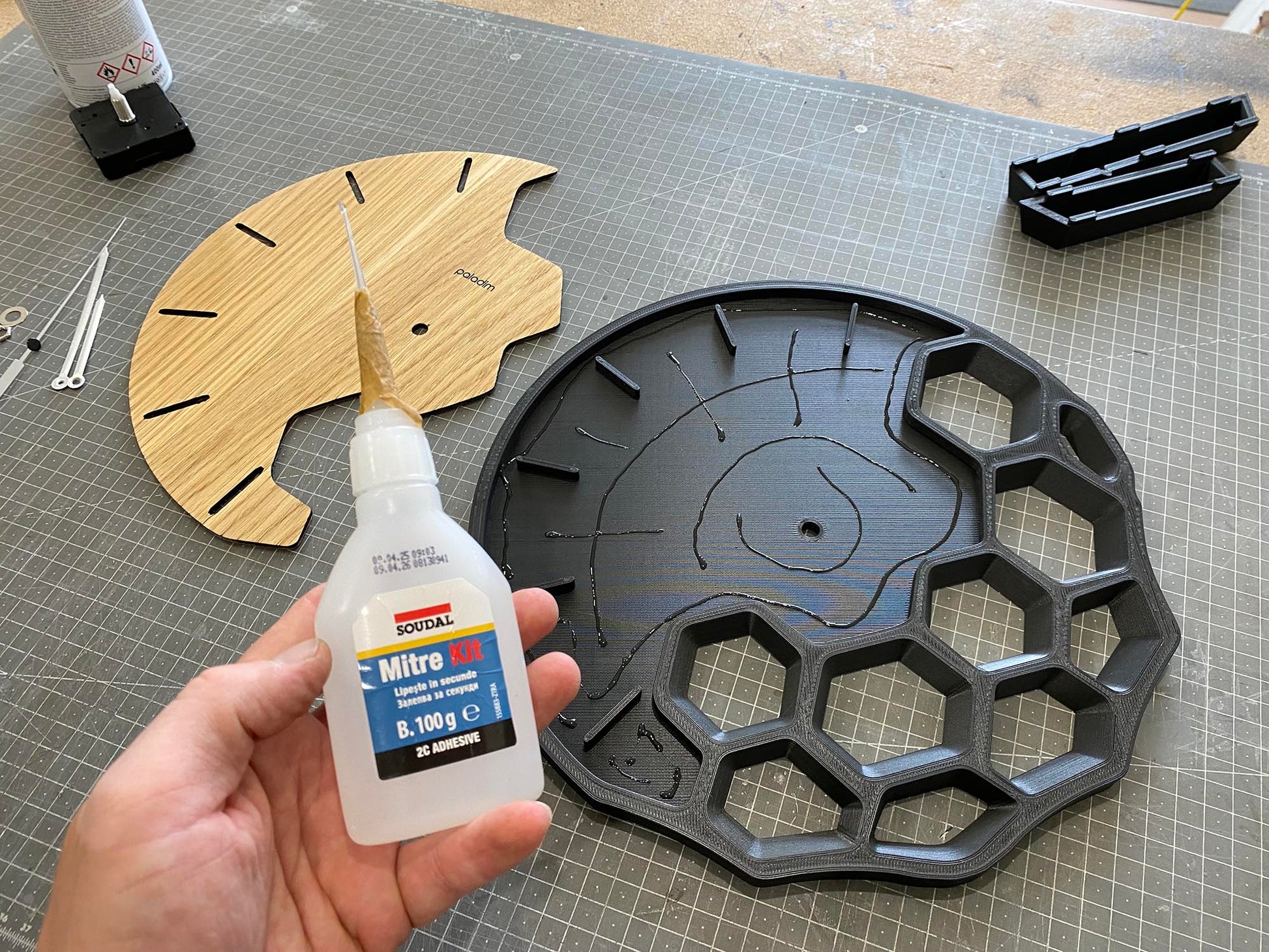

- I use CA glue to combine all parts together
