This is for all of my fellow makers who are looking for something cool to make.
Feel free to contact me with any feedback or if you have questions about the making process. Thank you for your support and go make!
Compatibility & File formats Included:
– F3D (Fusion 360 native format)
– STP (can be used in various CAM software)

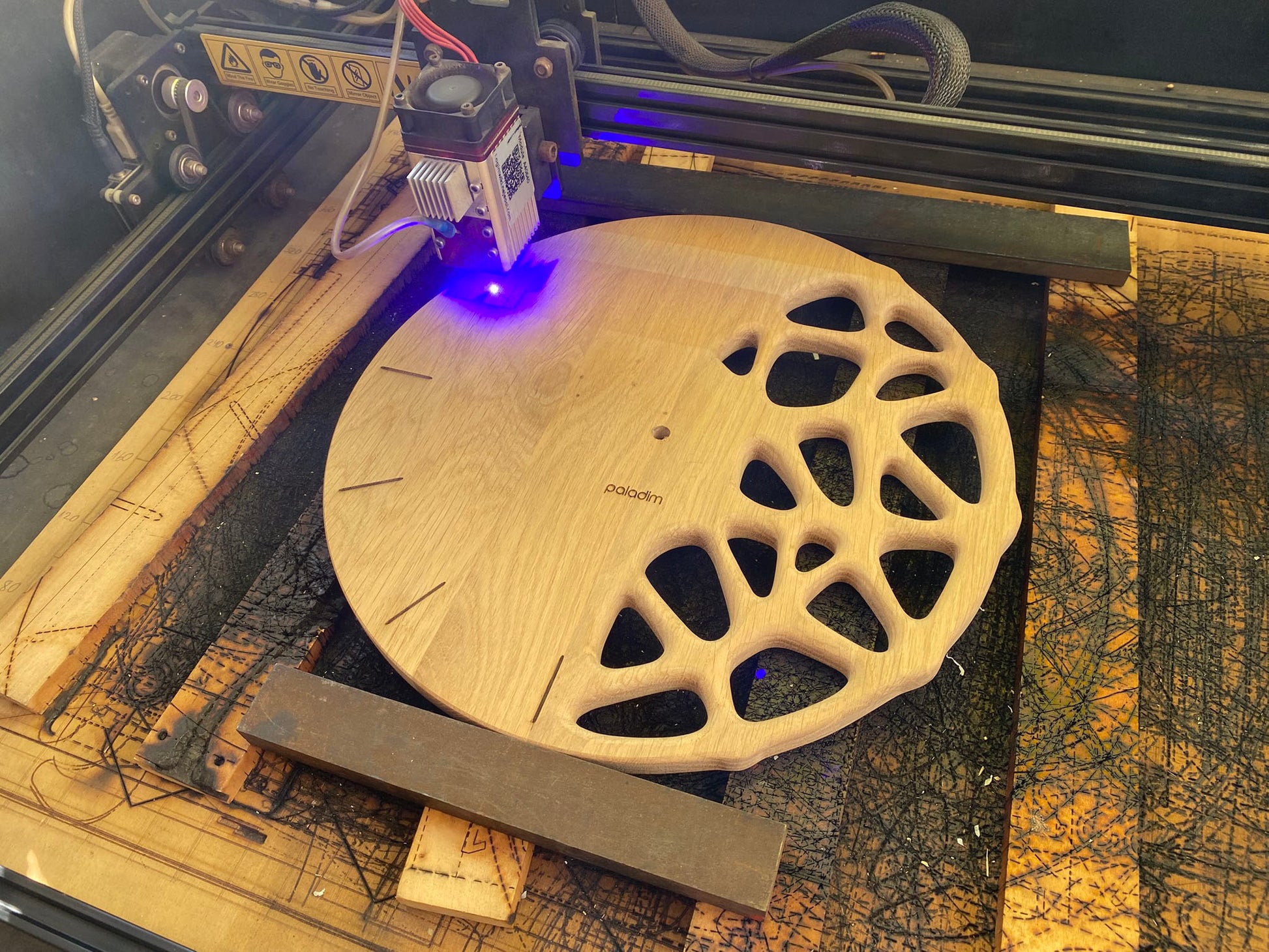

– DXF – Simplified 2D layout + laser engraving marks

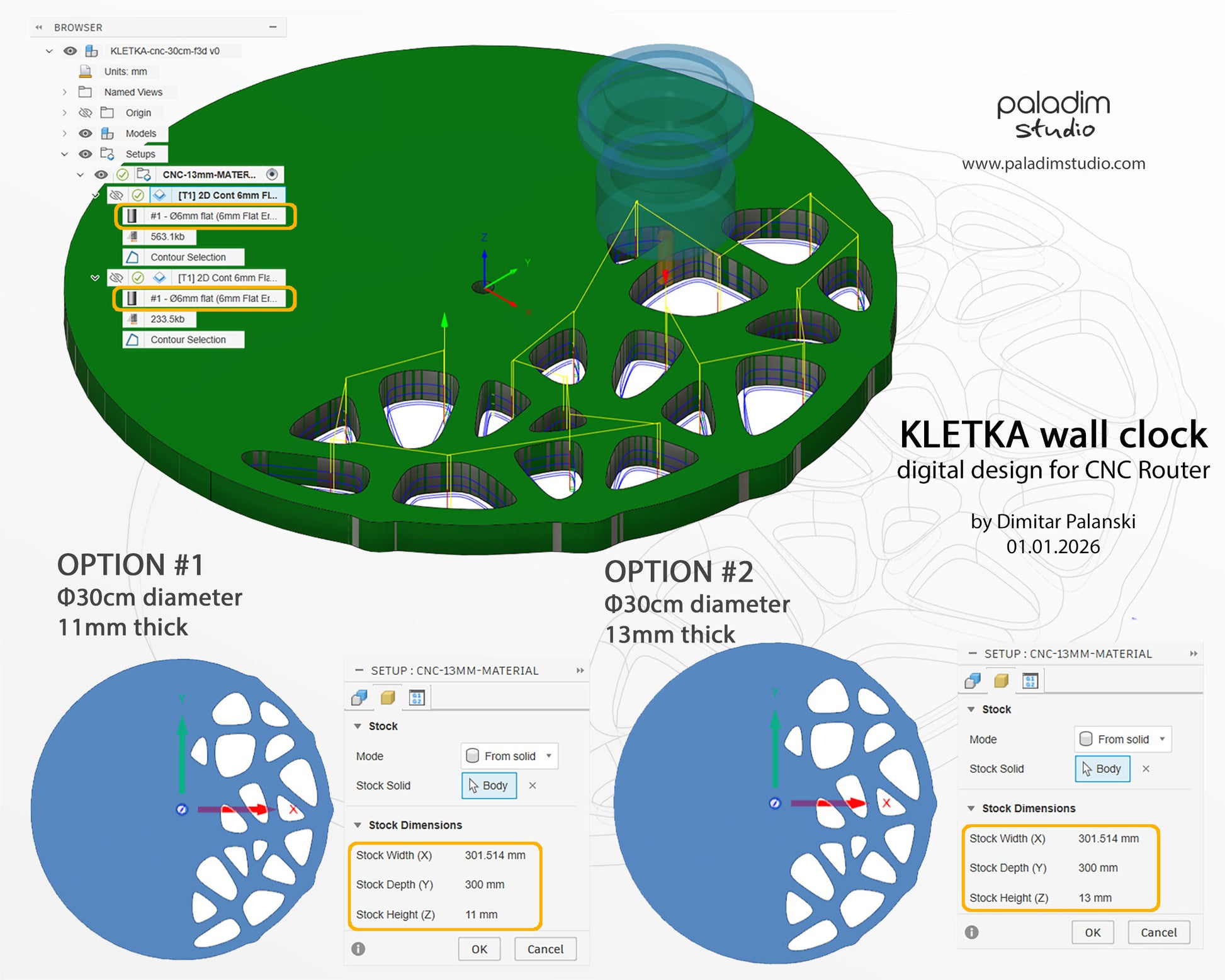

This design is ideal for Fusion 360, including the original F3D file for easy editing and toolpath generation.
The included STP file can also be imported into other CAM software that supports toolpath generation from 3D geometry, making it flexible for different CNC workflows.
The DXF can be useful for quick 2D operations or visualizing the base shape.
Material & Size Recommendations

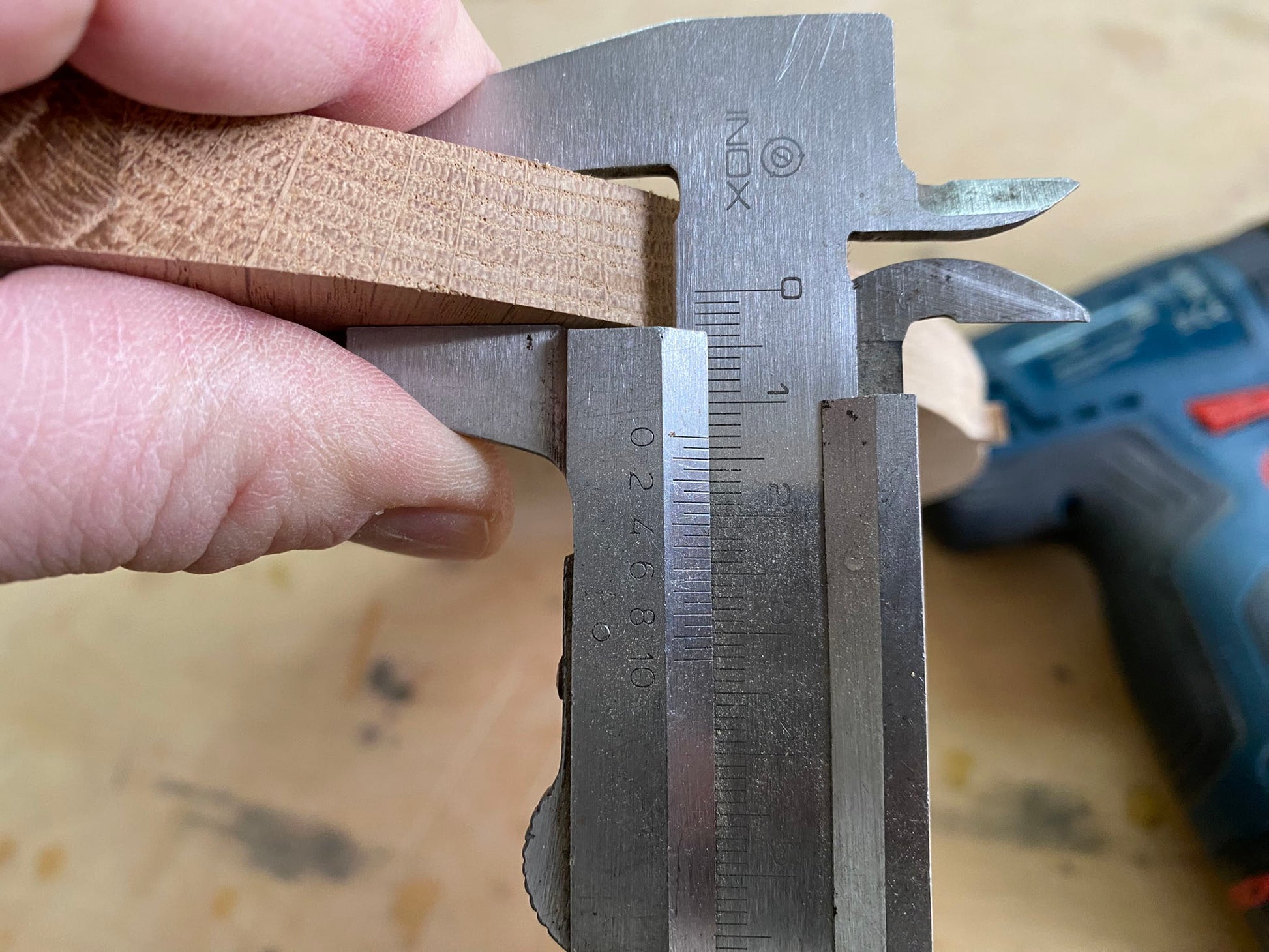

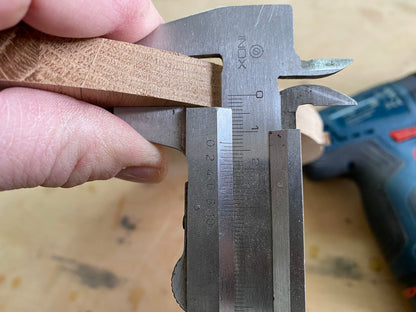

I used a 320x320x13mm stock of oak wood. The thickness can be either 11mm or 13mm.

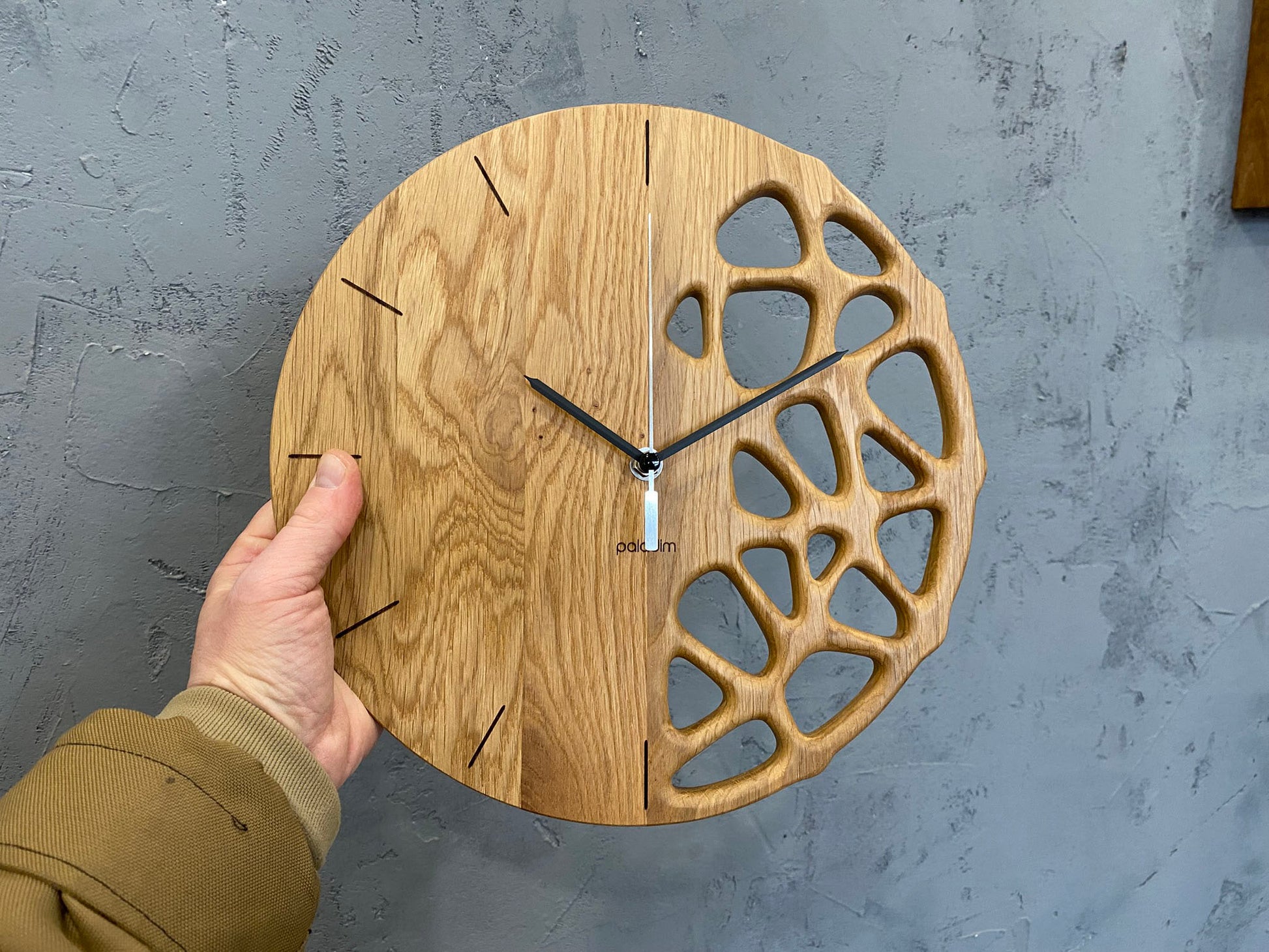

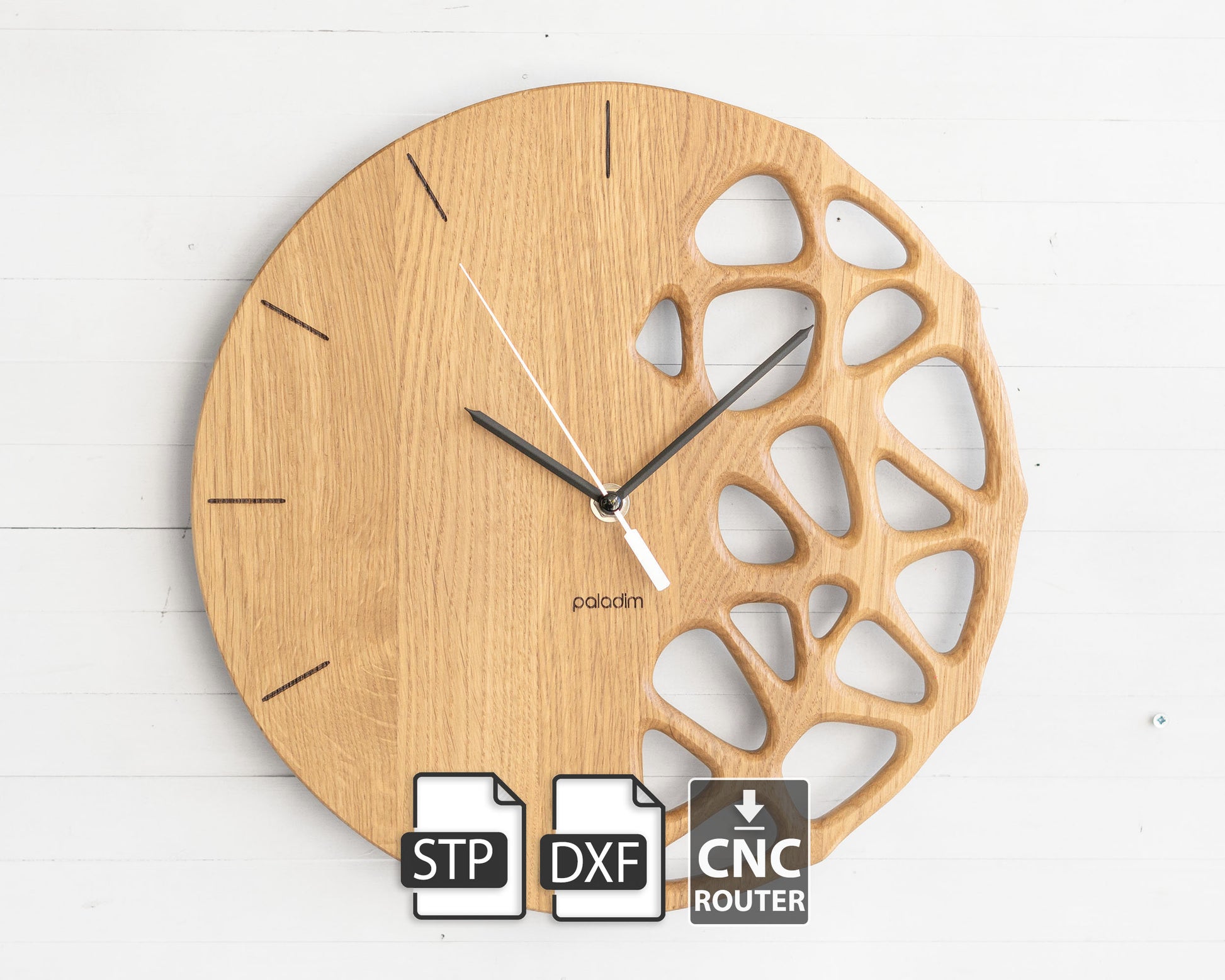

Final dimension of the clock is 30cm in diameter but make sure you have room for clamping/screwing.
Required Tools & Machine

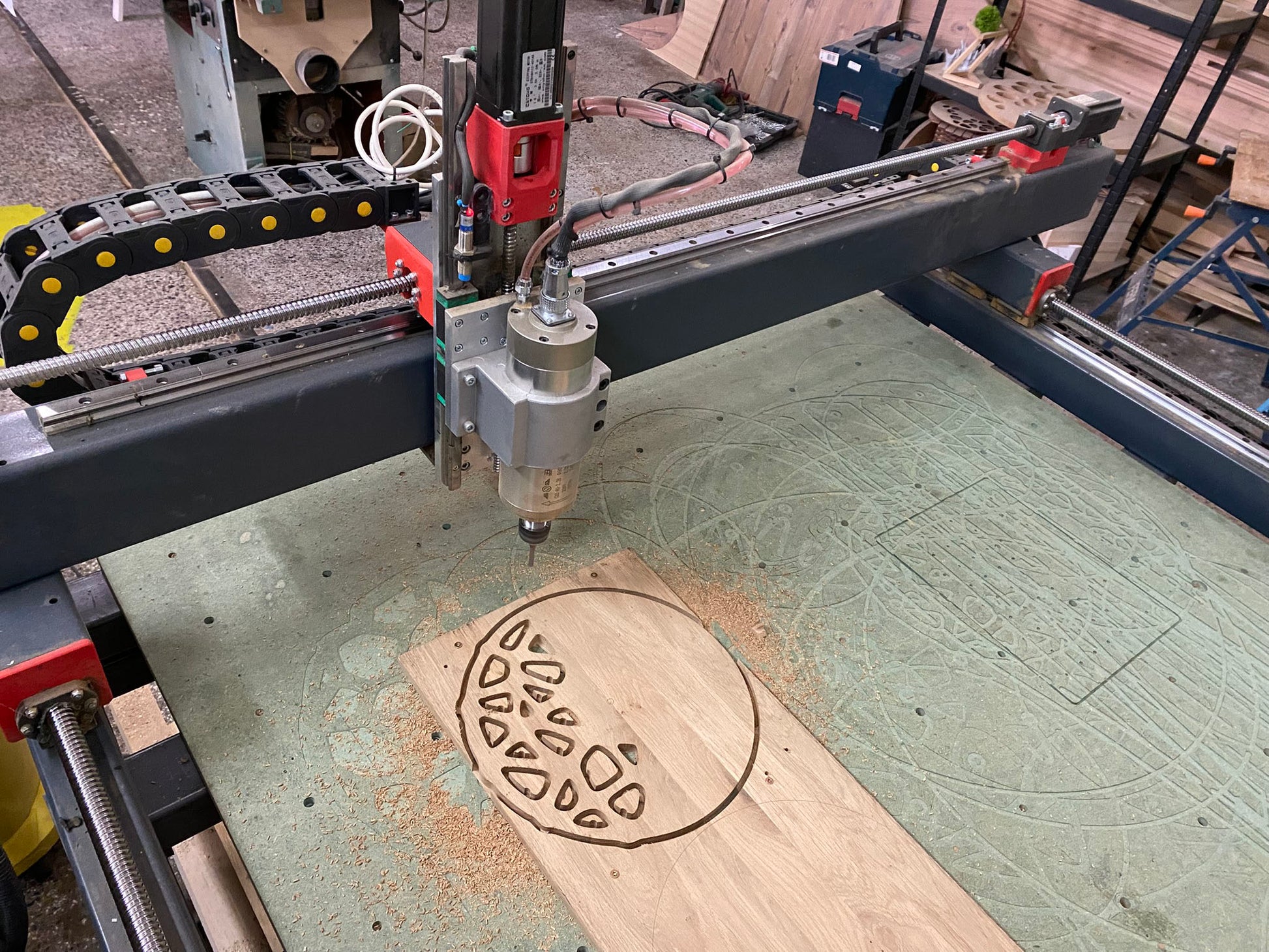

I machined this one using my PrintNC DIY 2.2kw router. Any router big enough to fit the base should do.

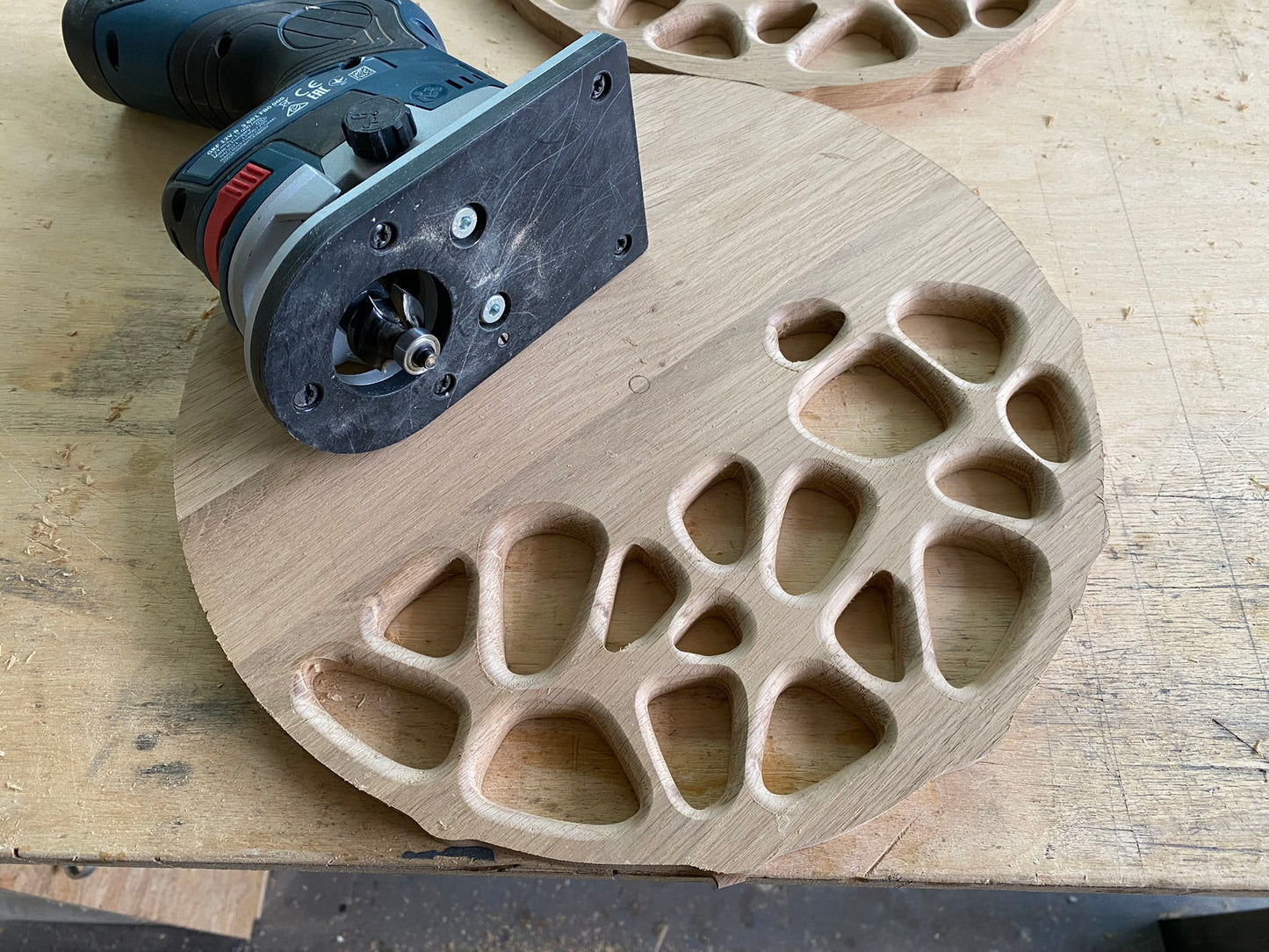

Bits I used: 6mm flat on my CNC + 6mm corner radius bit on my handheld router
You need to create several toolpaths, in my case I made 2 toolpaths and used a single router bit.
