"MIXOR Lite" Wall Clock DIGITAL DESIGN for Laser Cutting

This is for all of my fellow makers who are looking for something cool to build. What you need is a laser cutter and some 3mm thick plywood or mdf or whatever you find fitting.

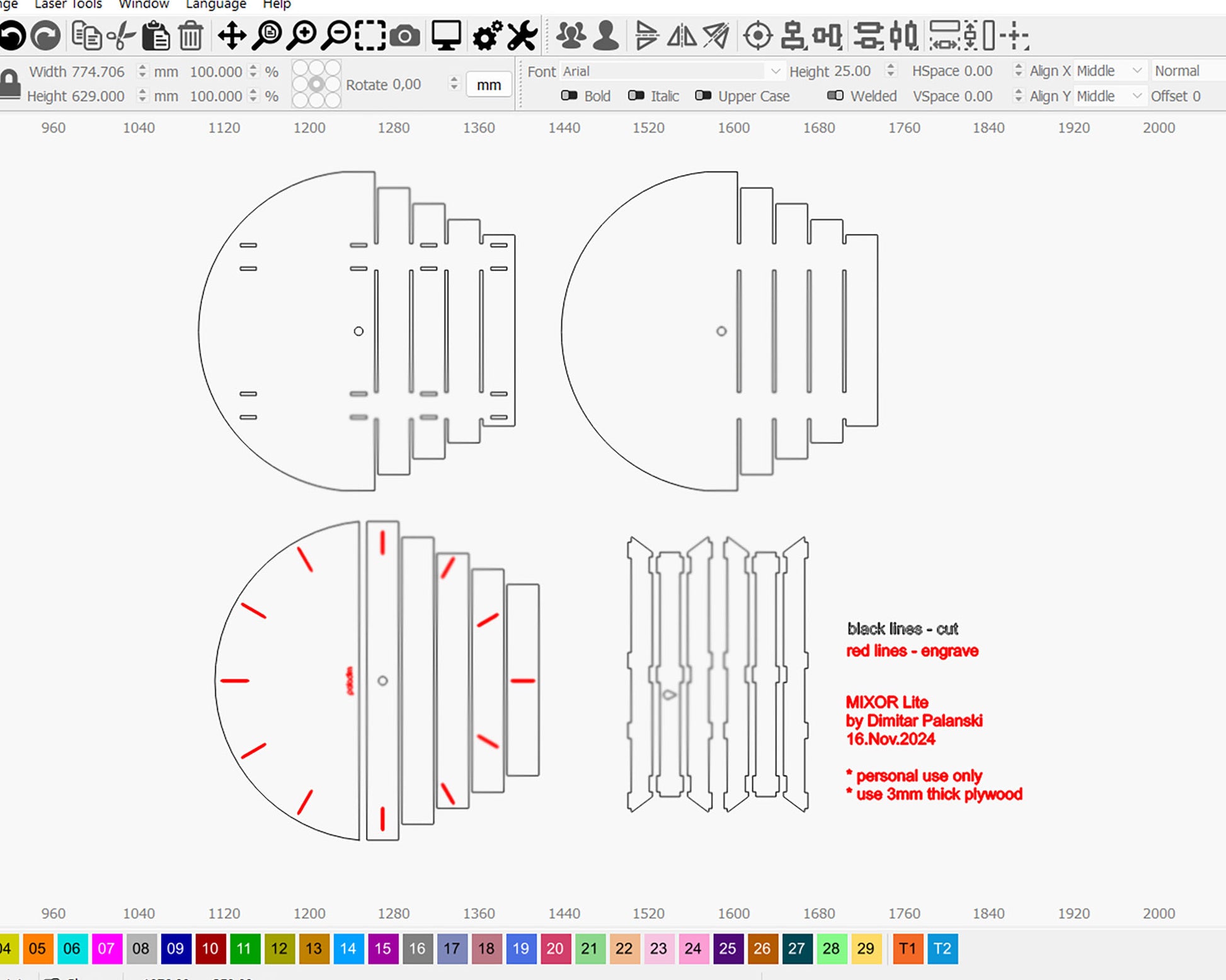

Ordering this file will allow you to download it instantly. You will receive a link on your email with a ZIP file containing:
- Lightburn files (.lbrn2)
- SVG file
- DXF file
- AI file

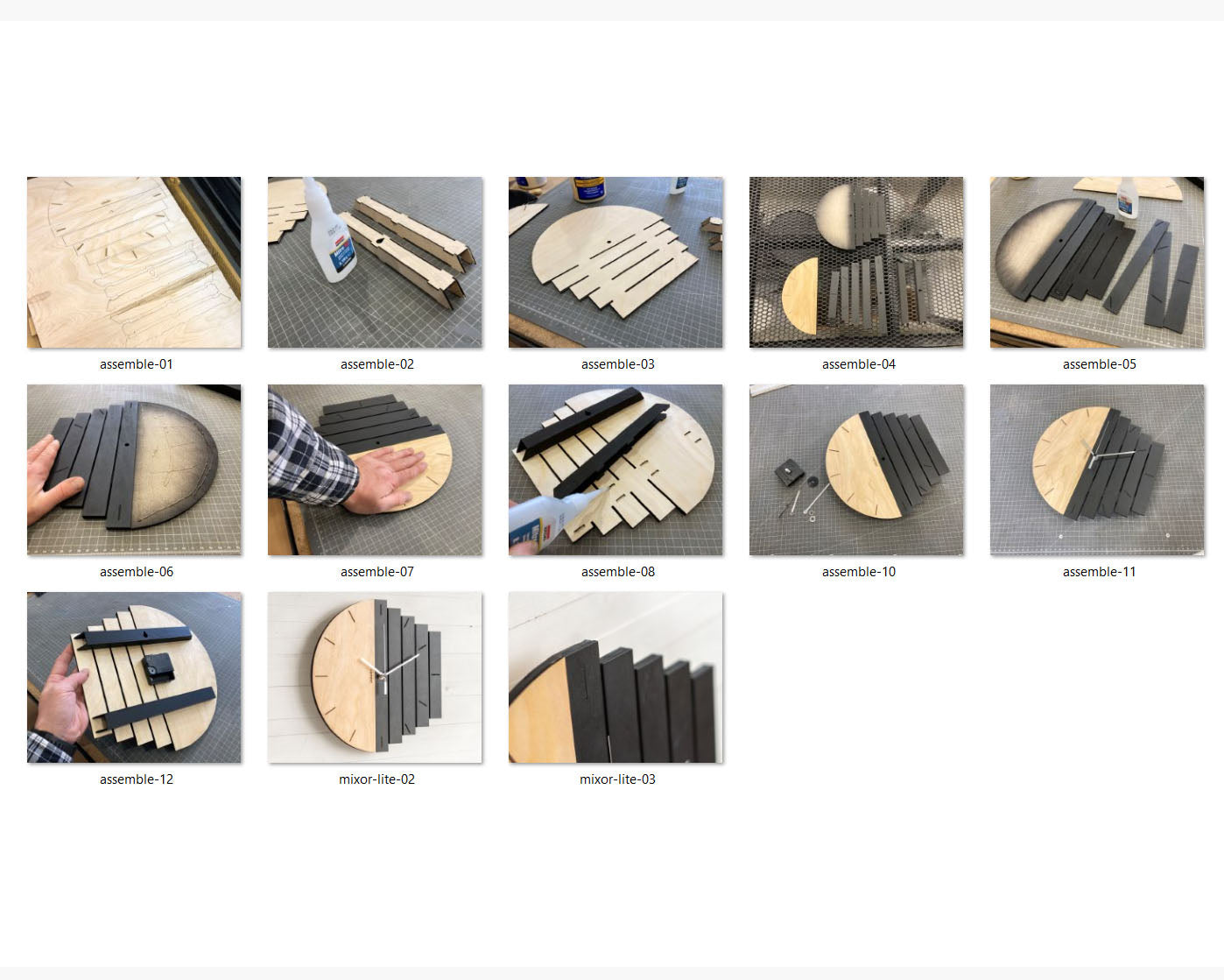

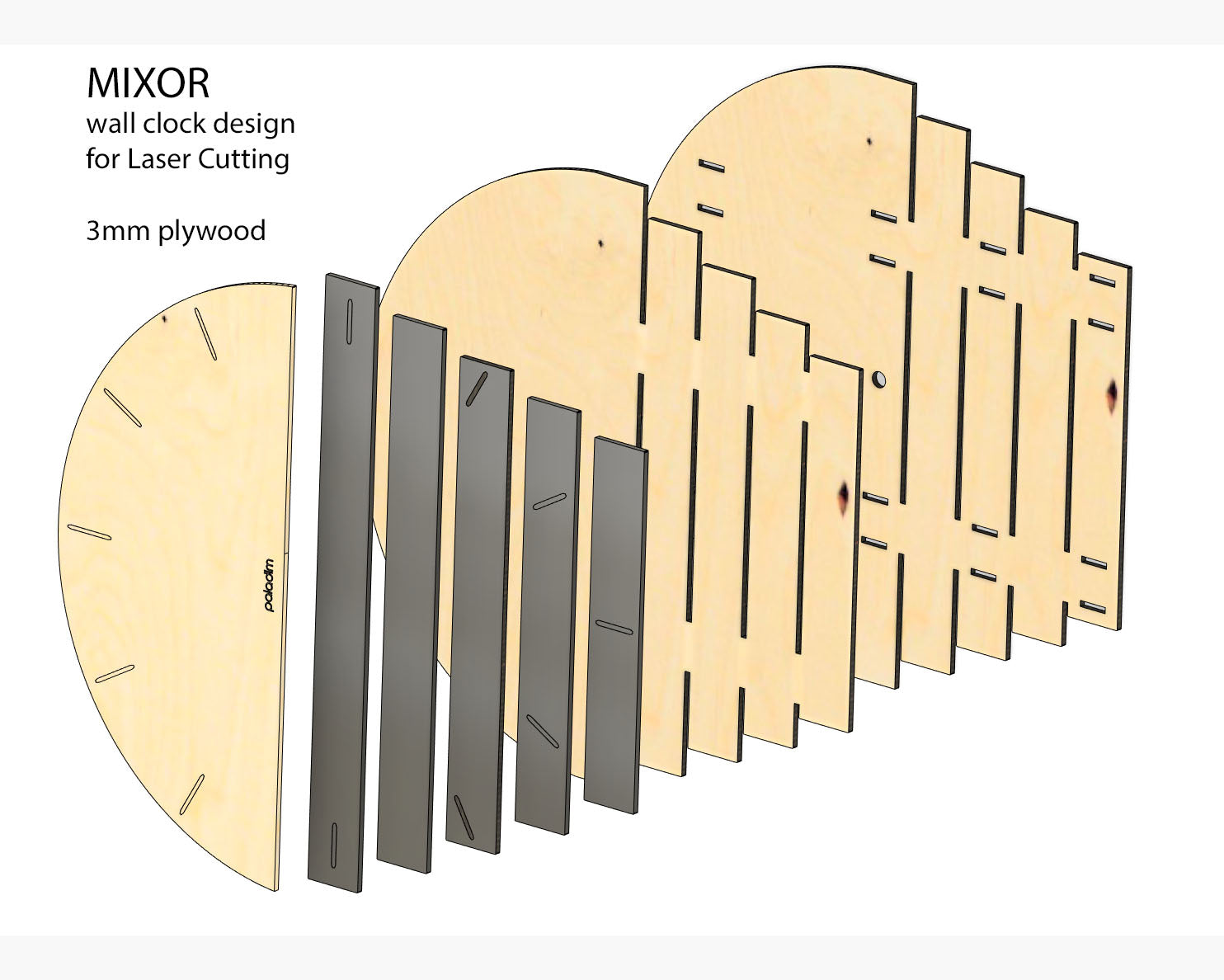

The clock consists of 3 layers of 3mm plywood. I made it out of birch ply on these photos. More info about how to make it is included in the download.

What you need to make it:

1. 3mm plywood: 4 sheets sized mininum 31x31cm (I use birch BB/BB)
2. CA glue (or wood glue, but it sets slower and you have to clamp the layers)
3. black spray paint and spray wood finish (I use satin, not glossy finish)
4. clock movement: shaft should be long enough to fit 9mm face (I use shaft length of 11.5mm)
 * you can buy one yourself, just double check the shaft length allows mounting on a face thickness of 9mm. You can also order one from me:
- DIY Silent Clock Movement Kit
