This is for all of my fellow makers who are looking for something cool to build.
You’ll need a 3D printer and some electrical components listed below.
Feel free to contact me with any feedback or if you have questions about the making process. Thank you for your support and go make!
Printer Compatibility
Compatible with 3D printers with a 180x180x180mm or larger build area. (Compatible with Bambu Lab A1 Mini or larger)
Download
Upon ordering, you will instantly receive a ZIP archive containing all STL files.
They are compatible with any 3D printer slicer software.

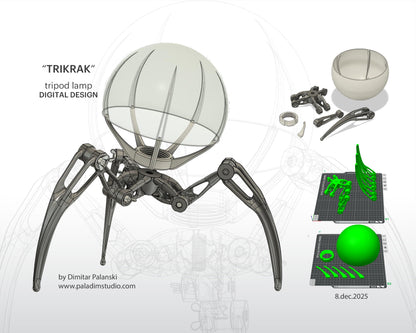

Included Files

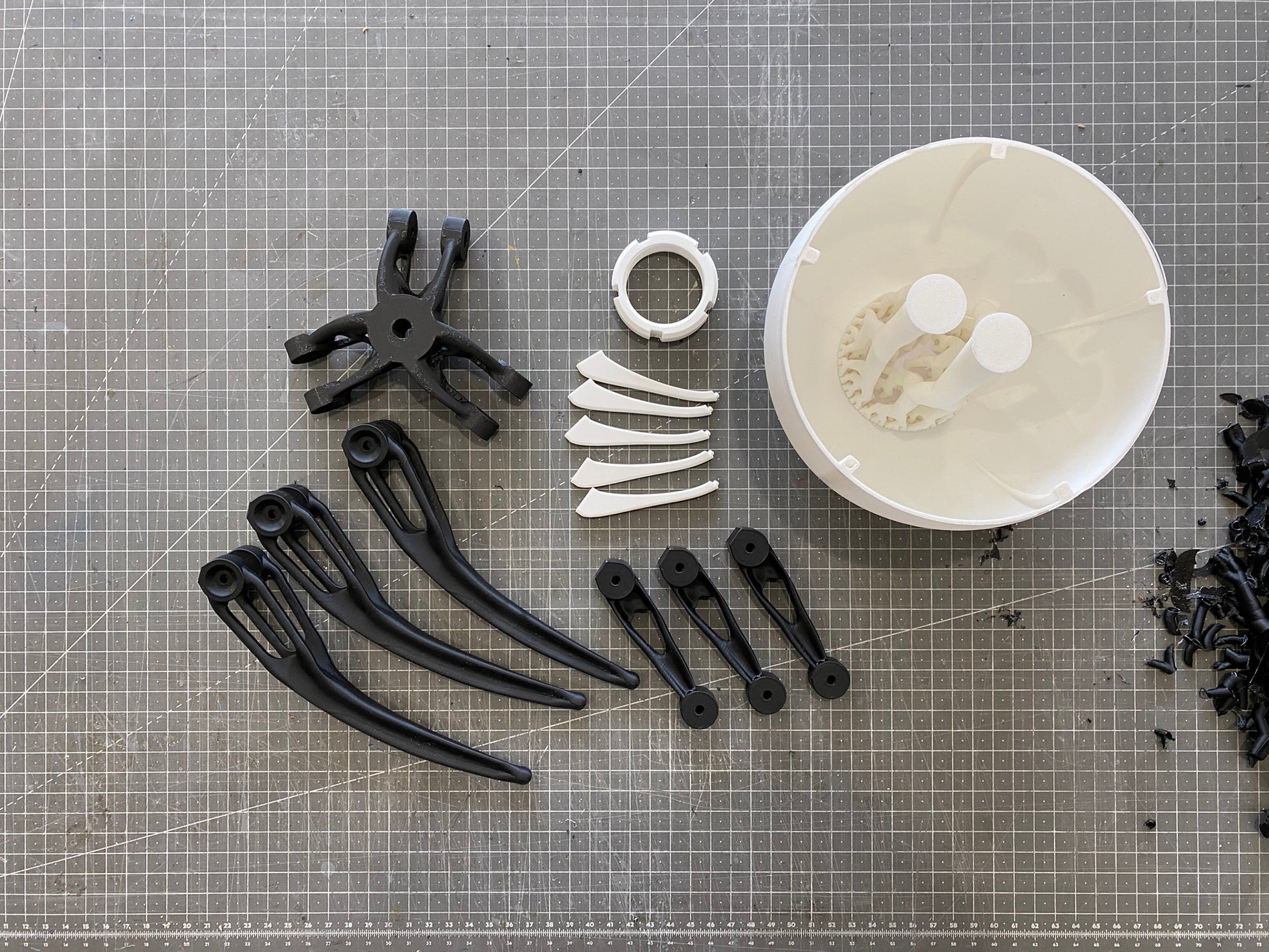

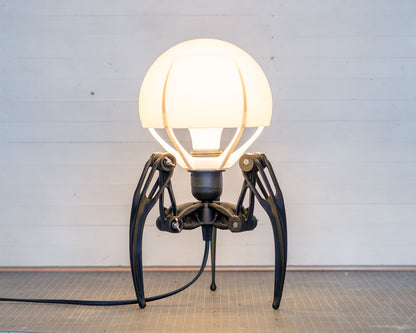

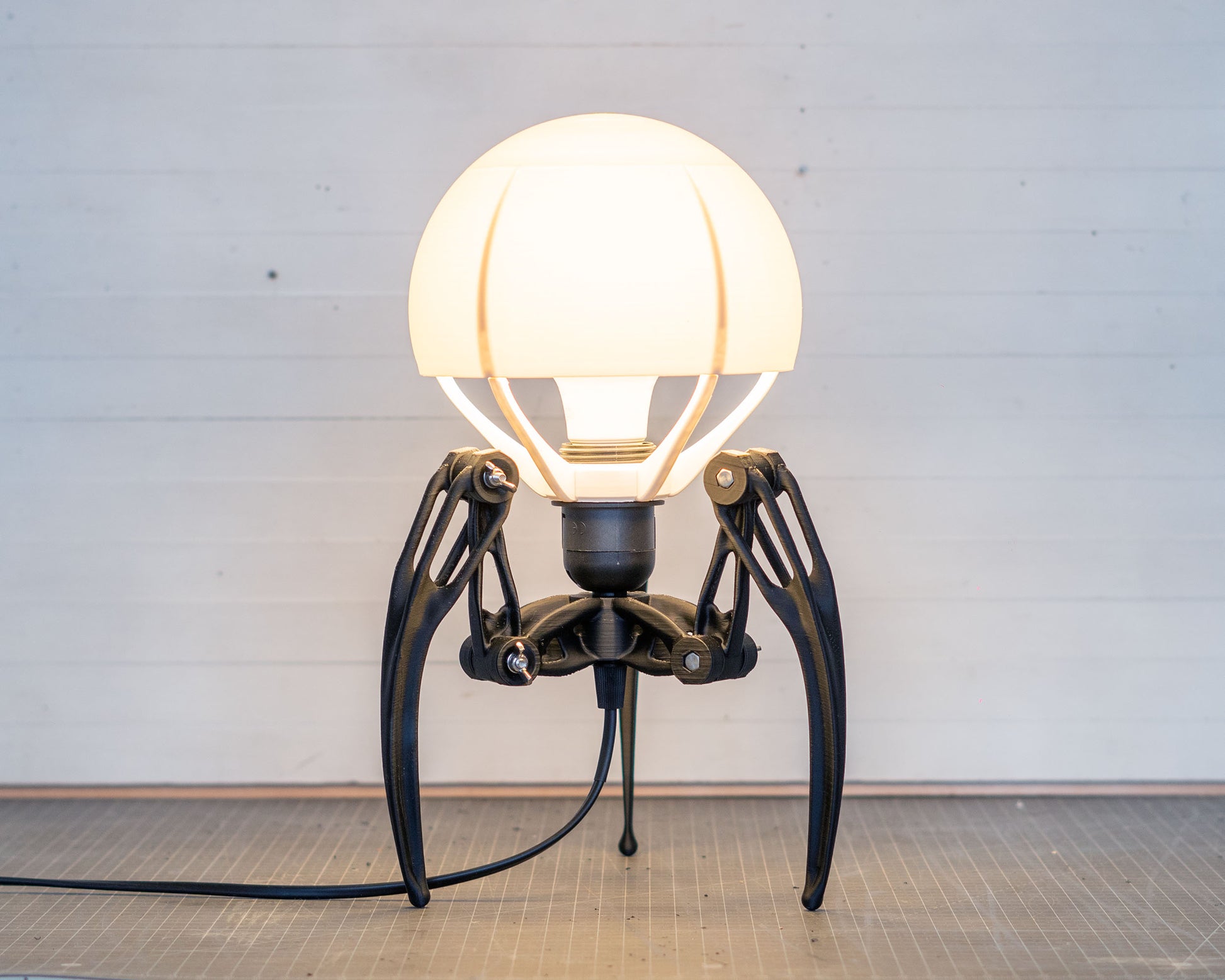

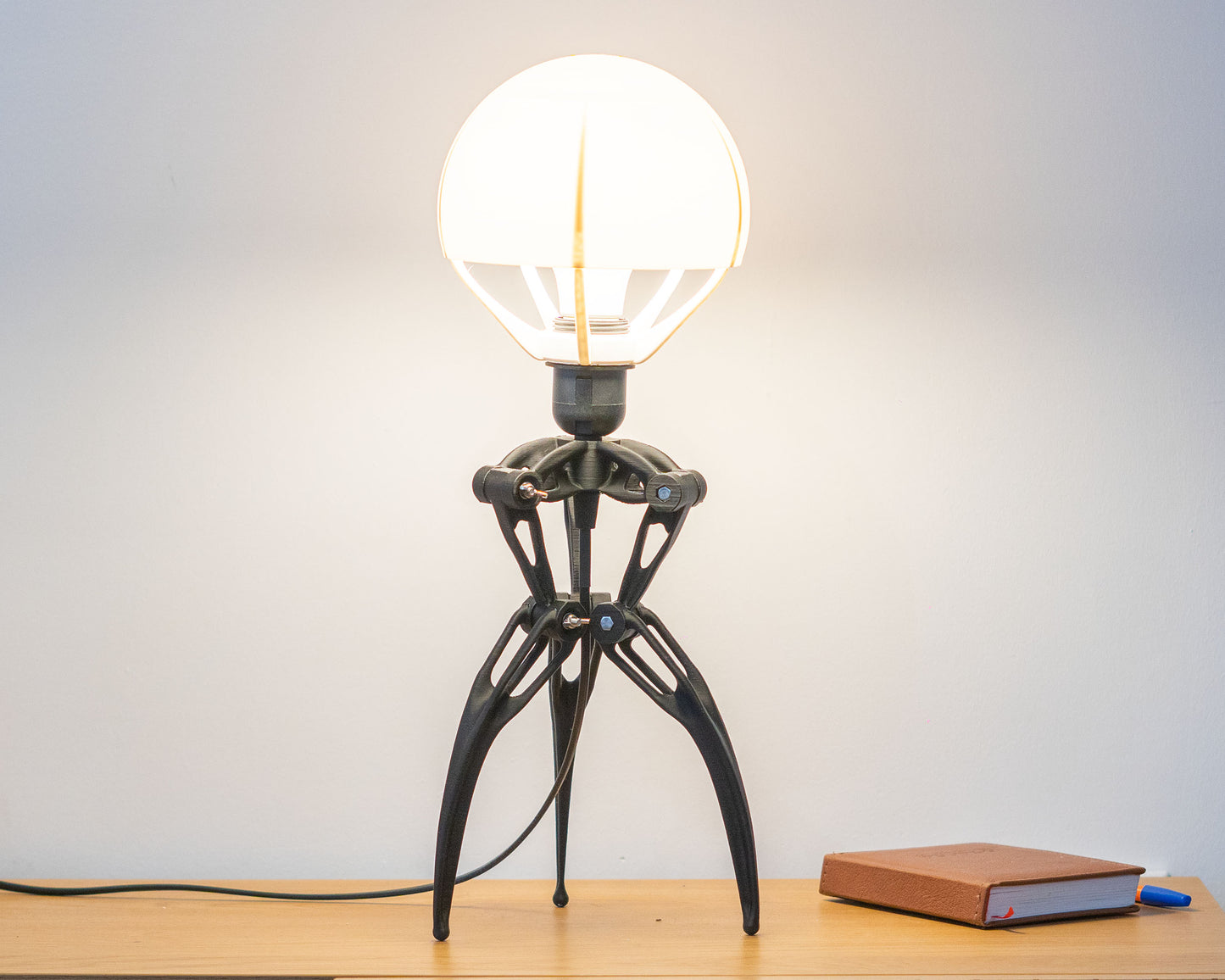

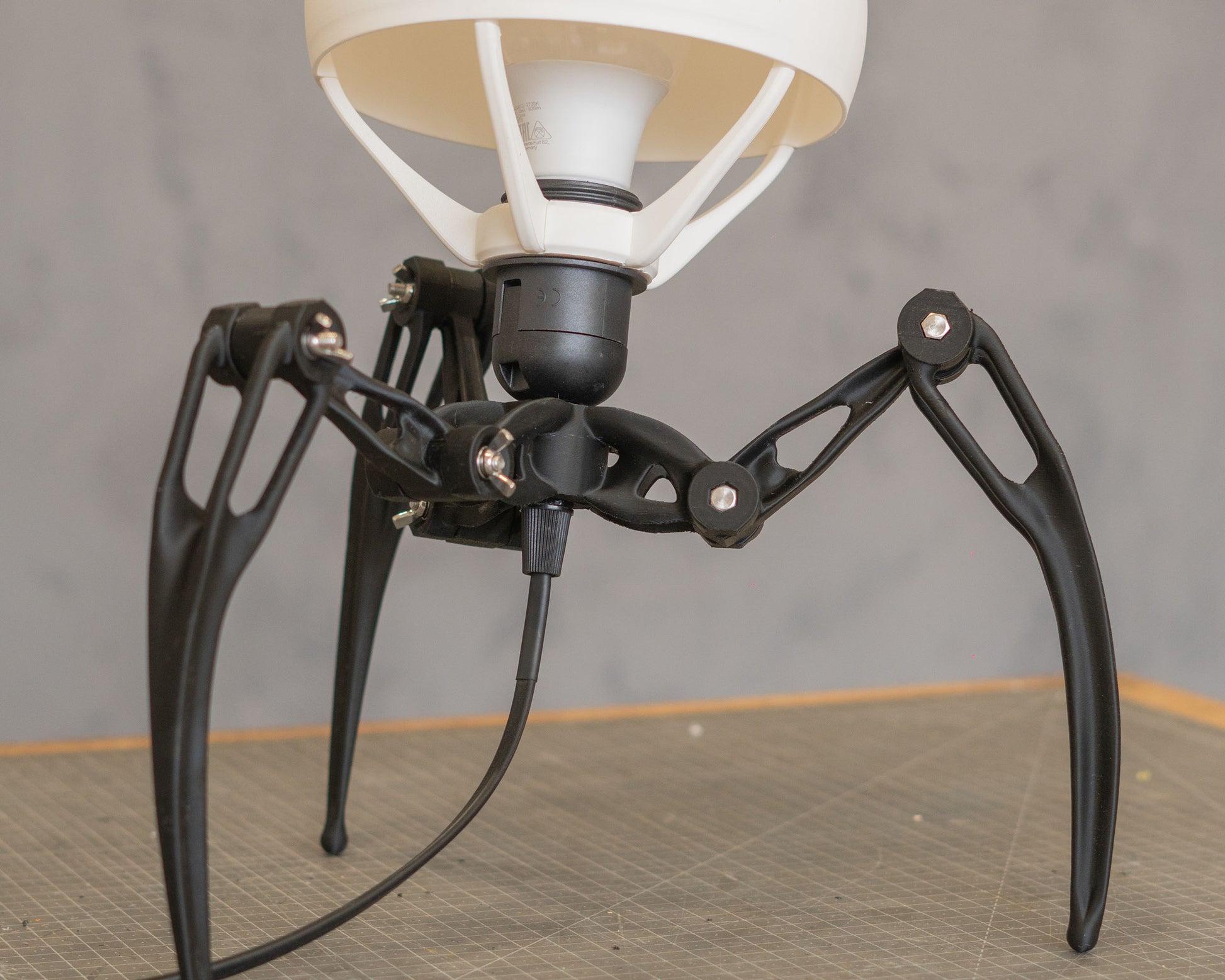

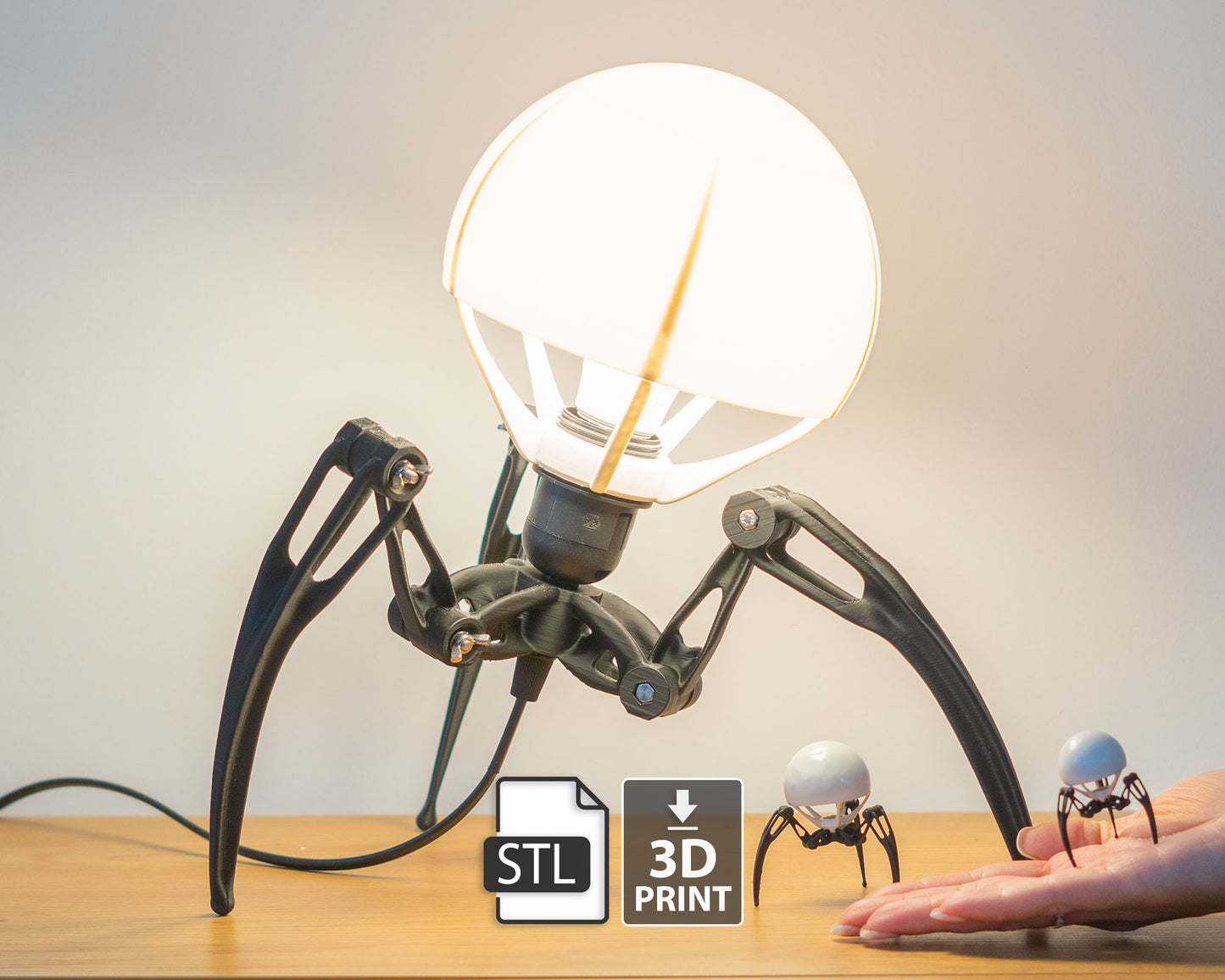

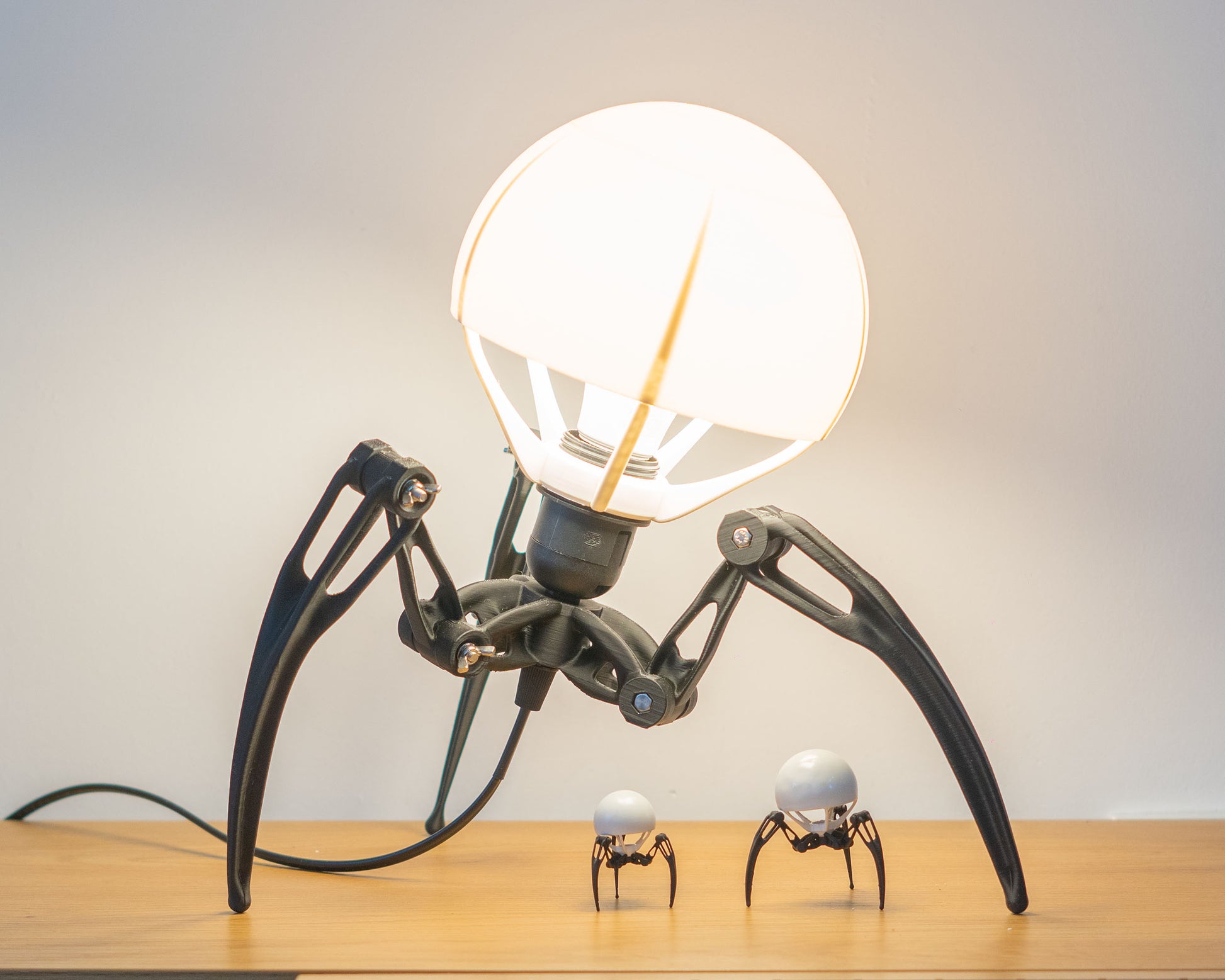

1) STL files – Tripod lamp

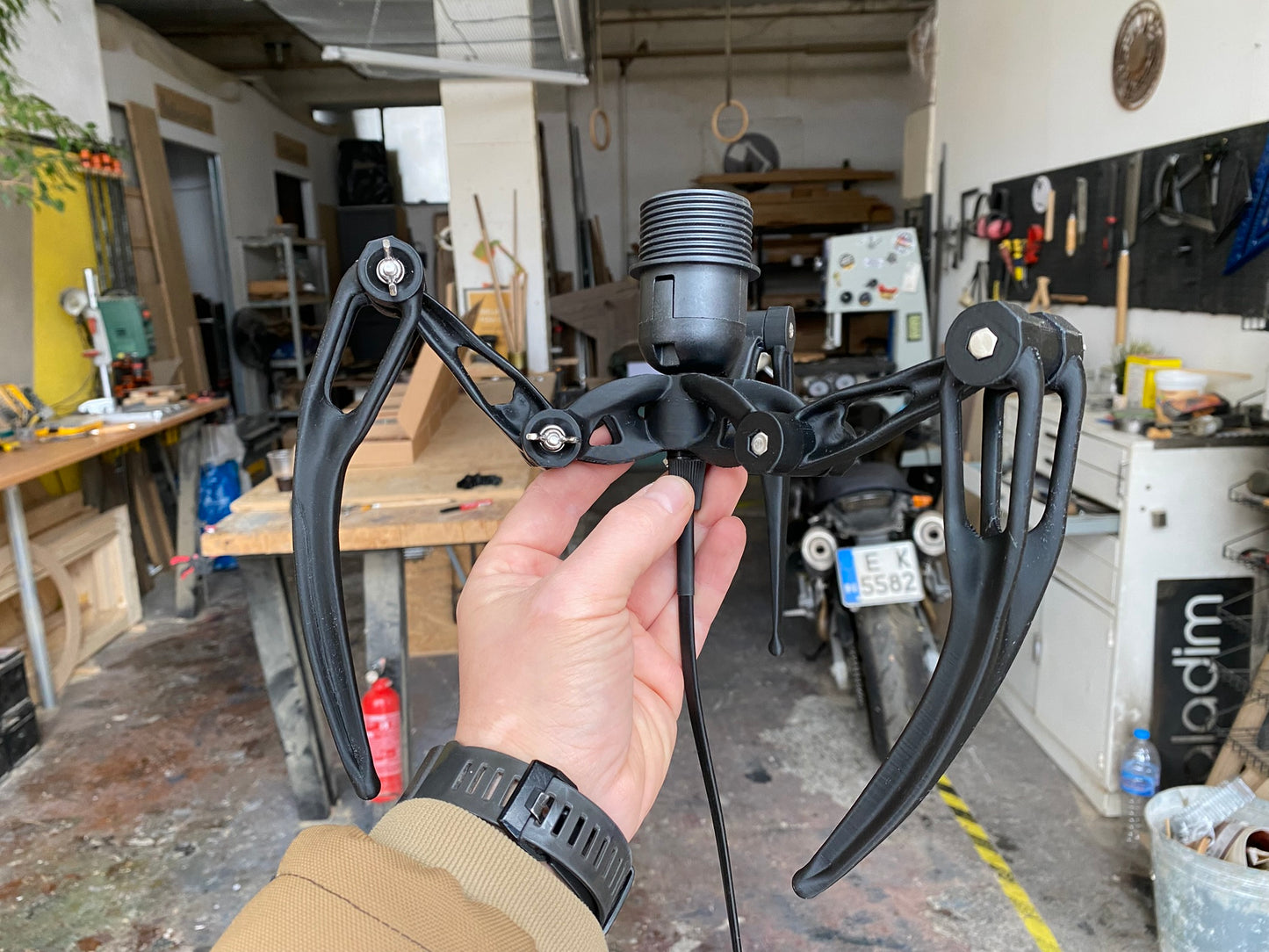

- 1× base (thread: M10×1, thread length 25 mm)
- 3× short legs
- 3× long legs

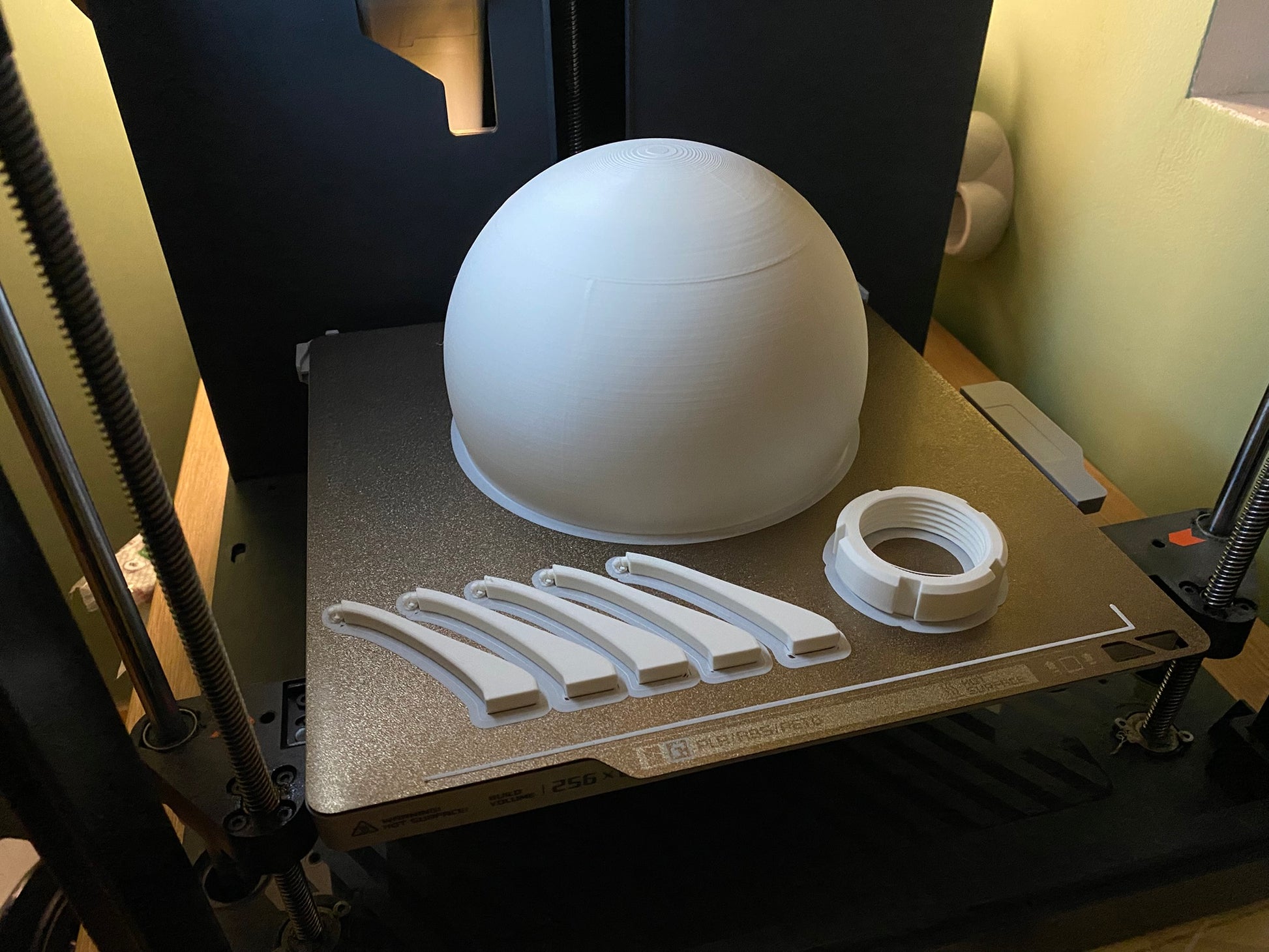

2) STL files – E27 hemisphere shade
- diameter: Ø160 mm
- integrated E27 internal thread for the socket (M40×2.5, 0.2 mm clearance)

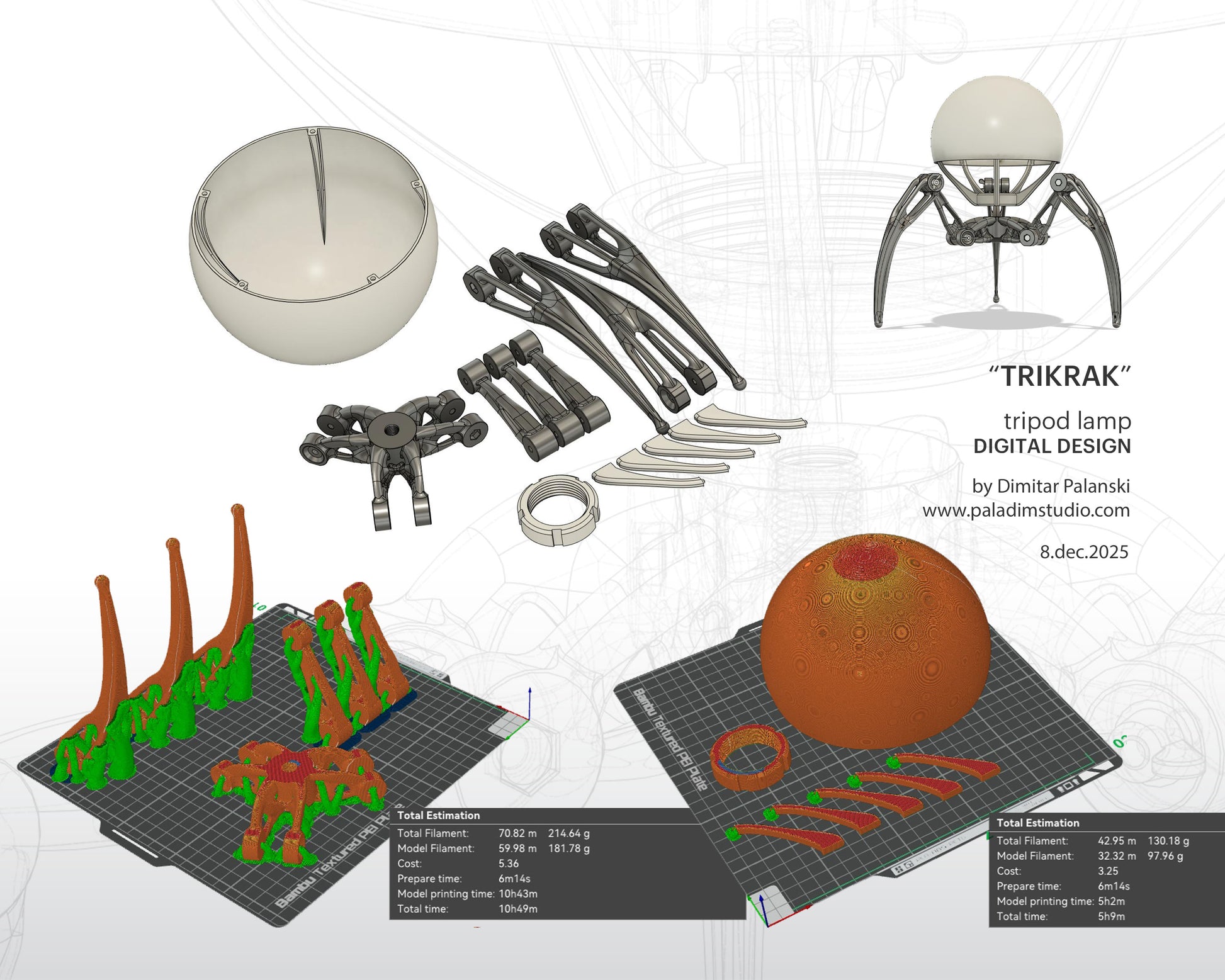

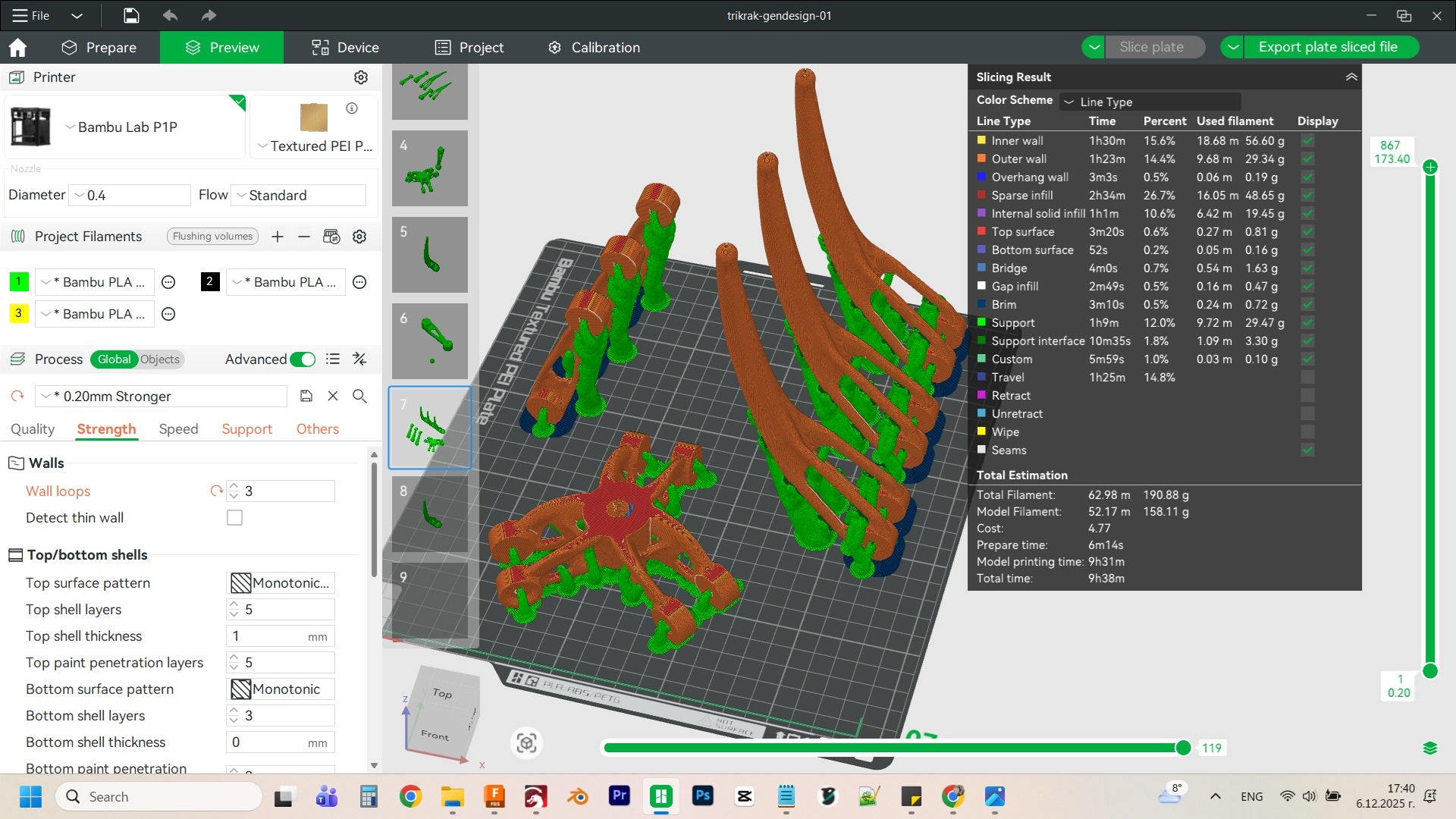

3) 3MF project for Bambu Studio
Materials & Assembly
I printed mine in PLA, but PETG is recommended for extra strength.
Resin printing also works beautifully.

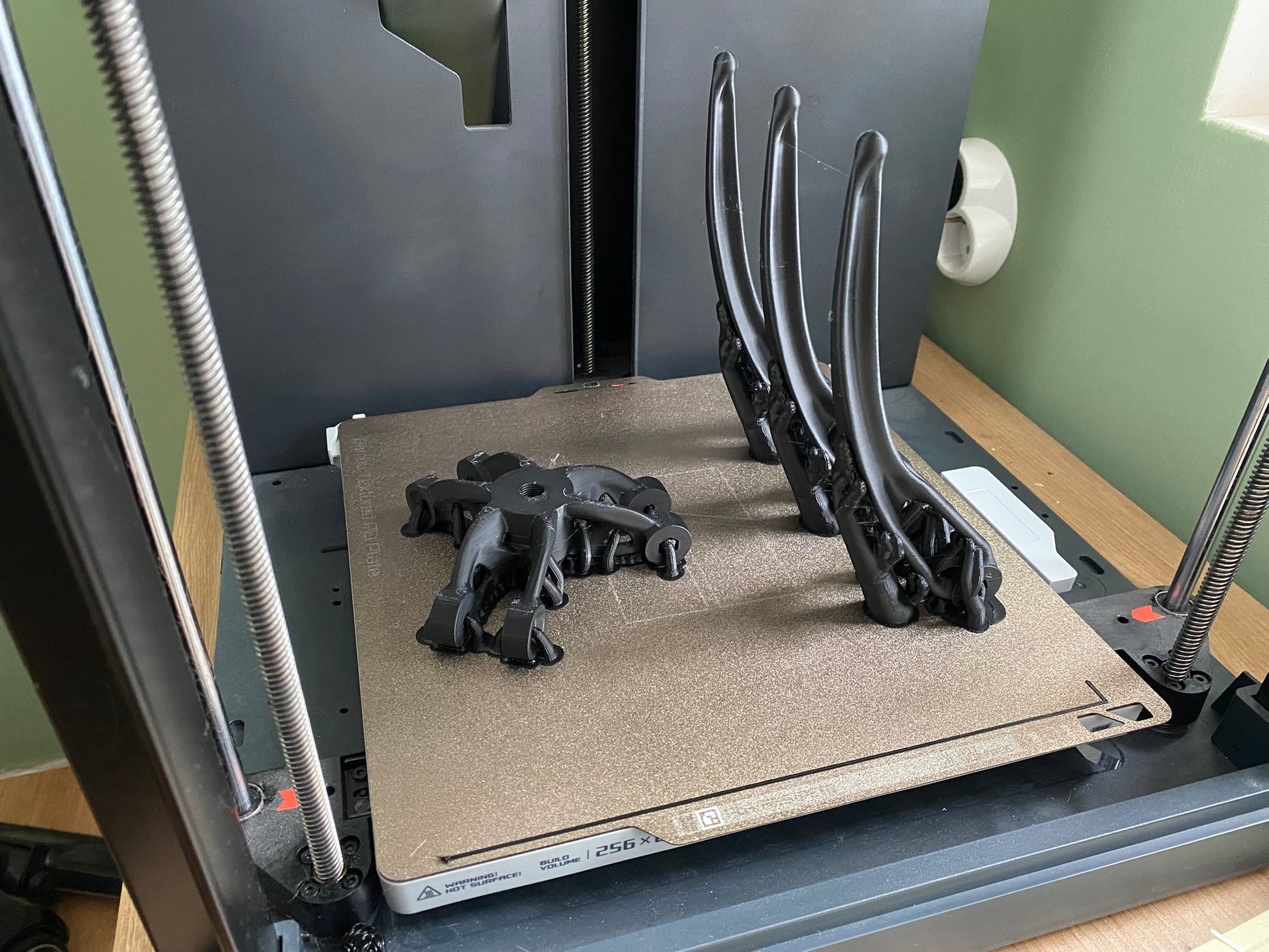

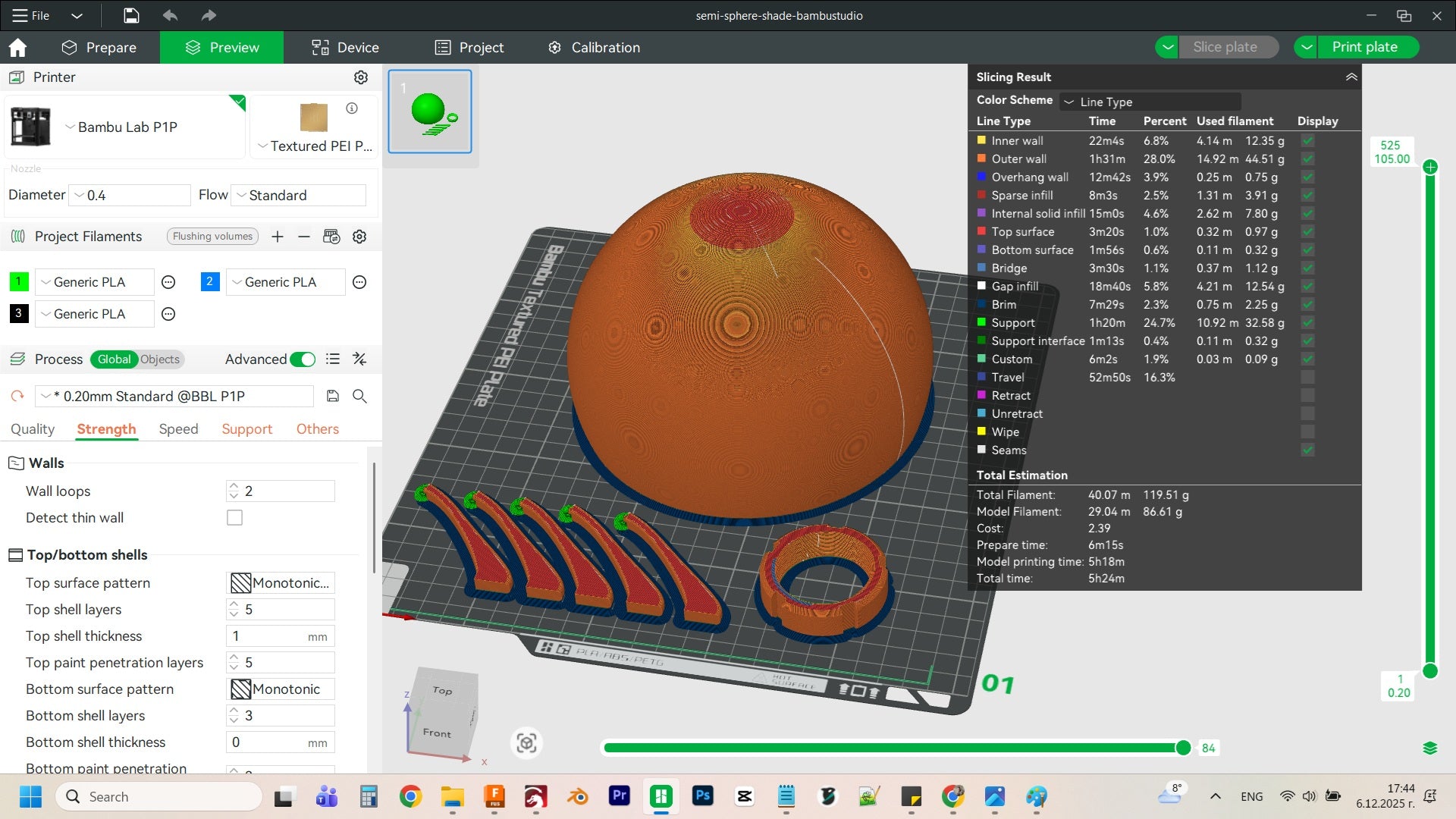

My print settings: 4 walls / 75% gyroid infill.
Total print time around 15 hours and 350g PLA on BambuLab P1P.

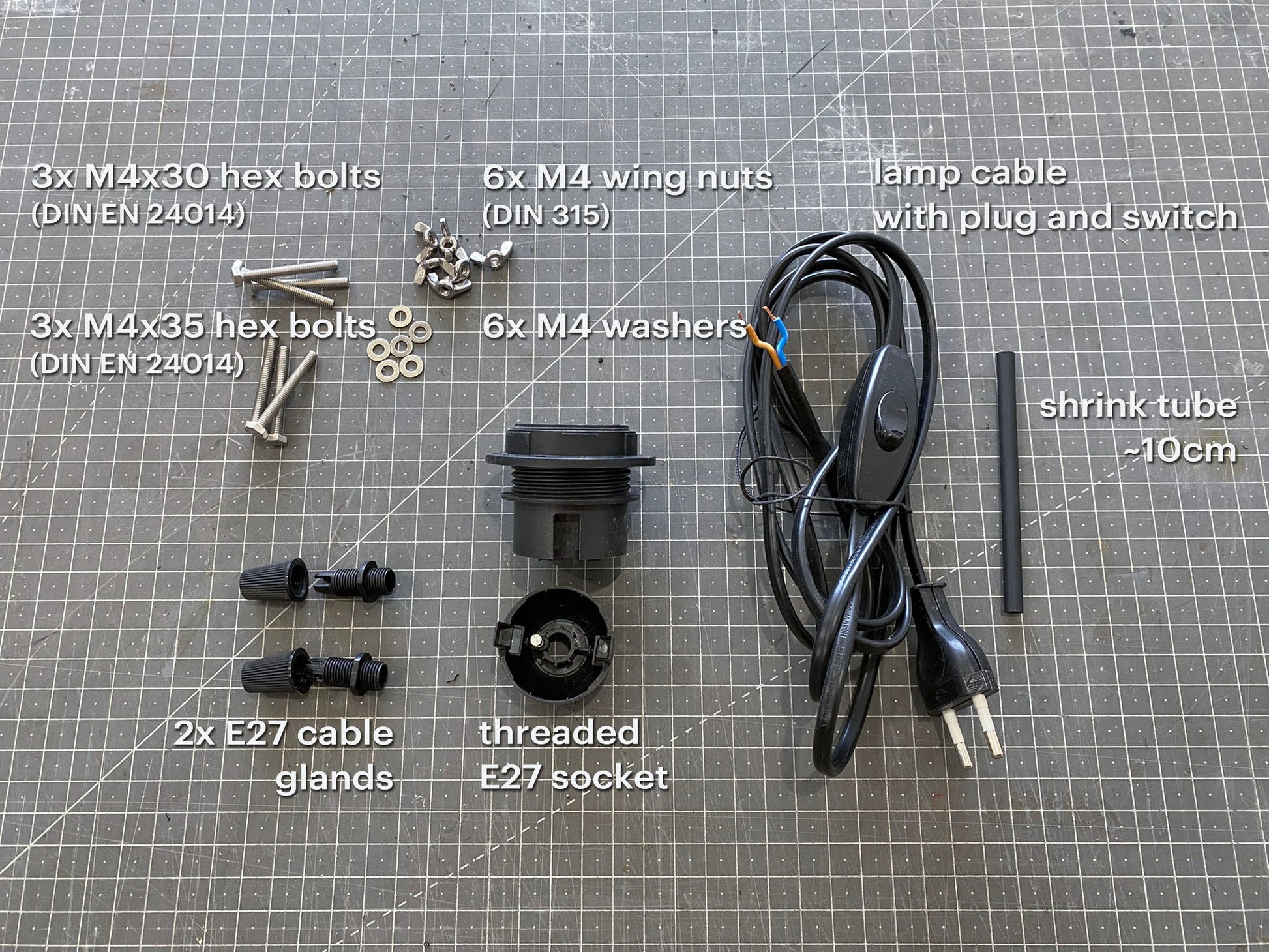

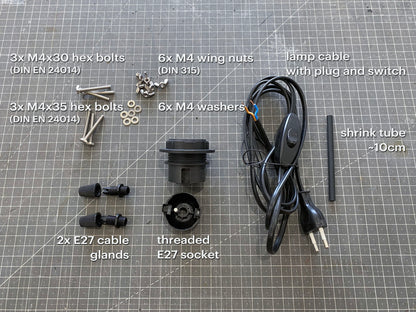

Additional hardware used:

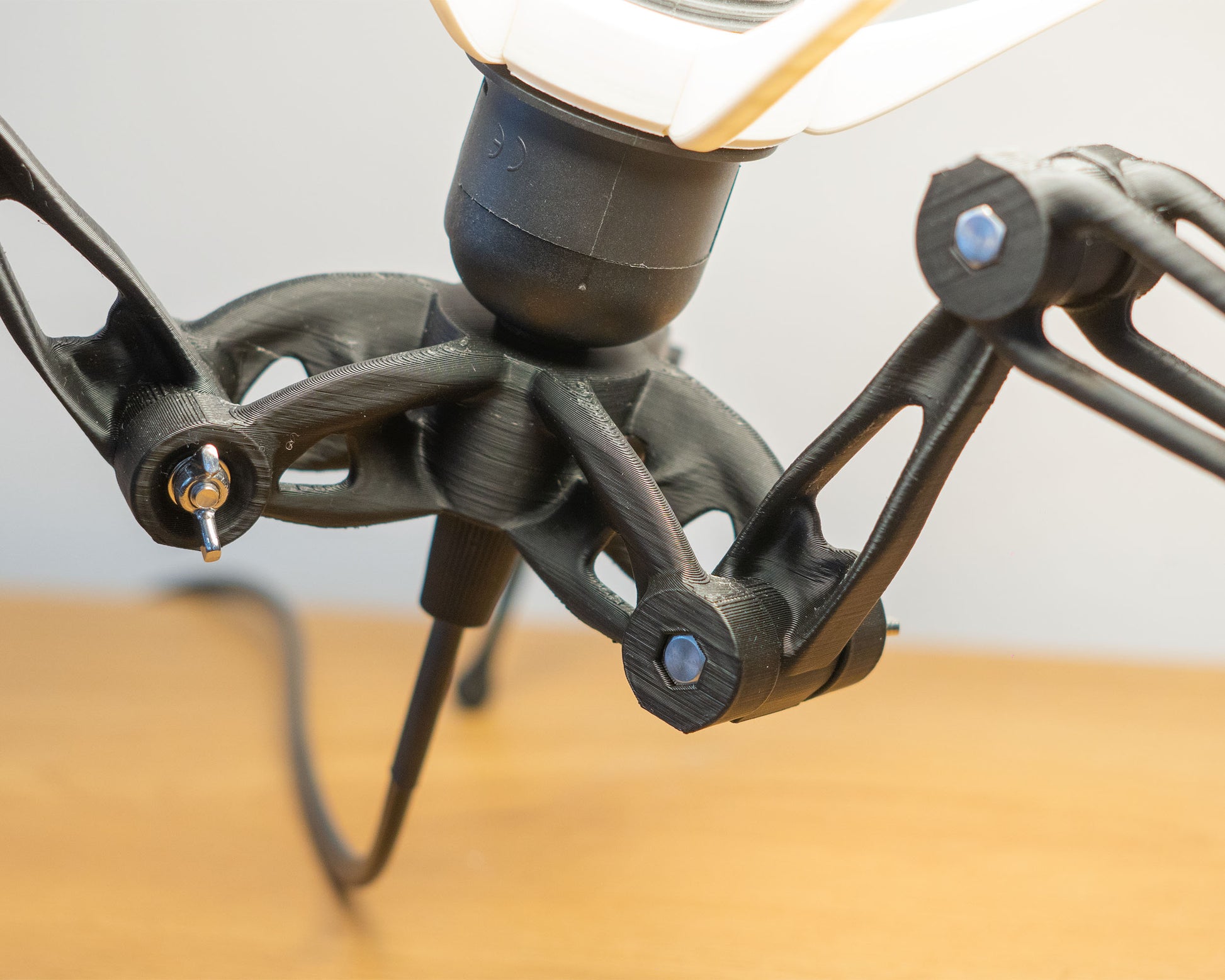

- 3× M4×30 hex bolts
- 3× M4×35 hex bolts
- 6× M4 washers
- 6× M4 wing nuts

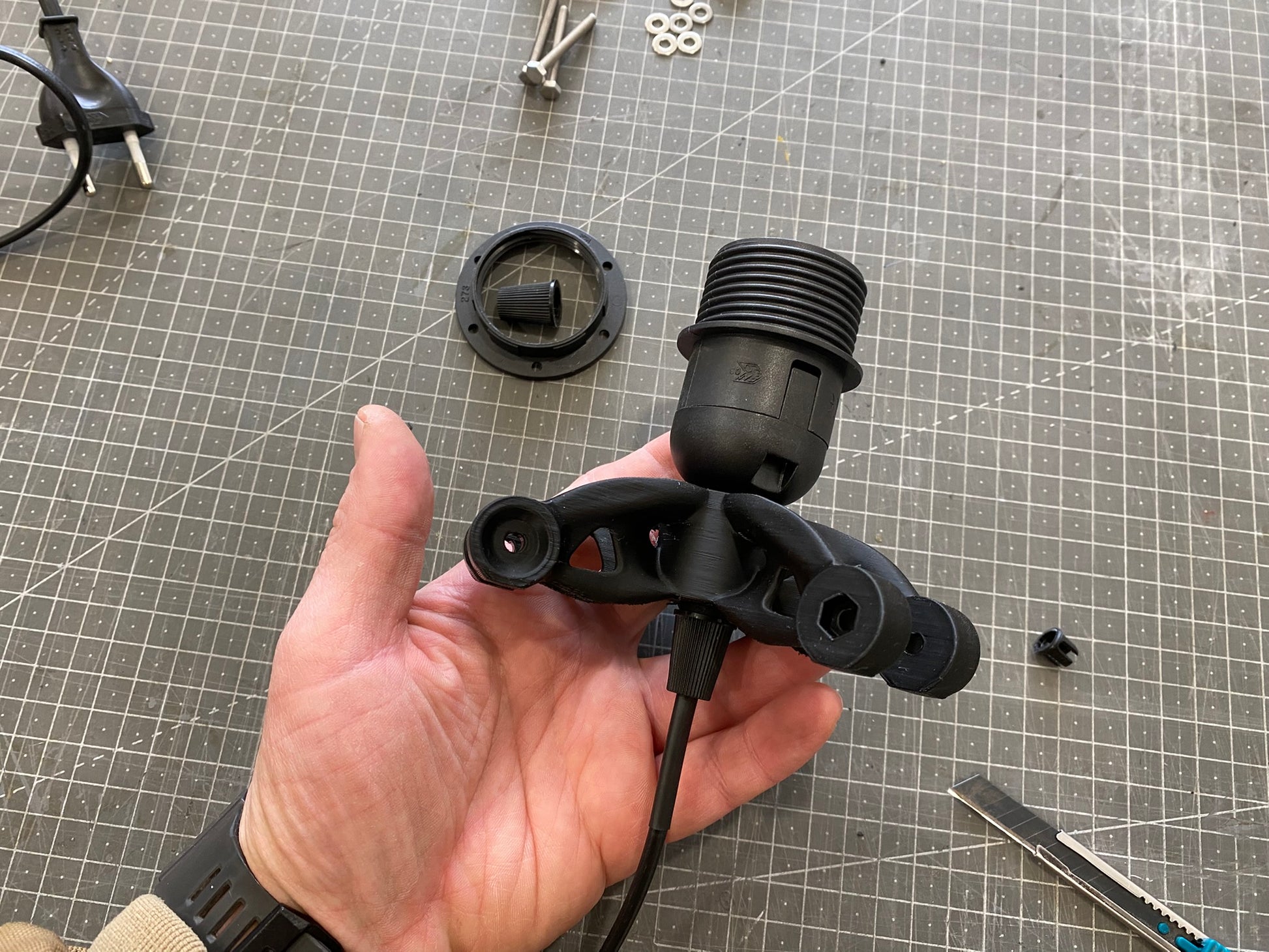

- E27 lightbulb socket
- lamp cable with plug and in-line switch
- 2× M10×1 cable glands
- small piece of heat-shrink tubing
See the original TRIKRAK model here:
https://paladimstudio.com/products/trikrak-character-lamp
